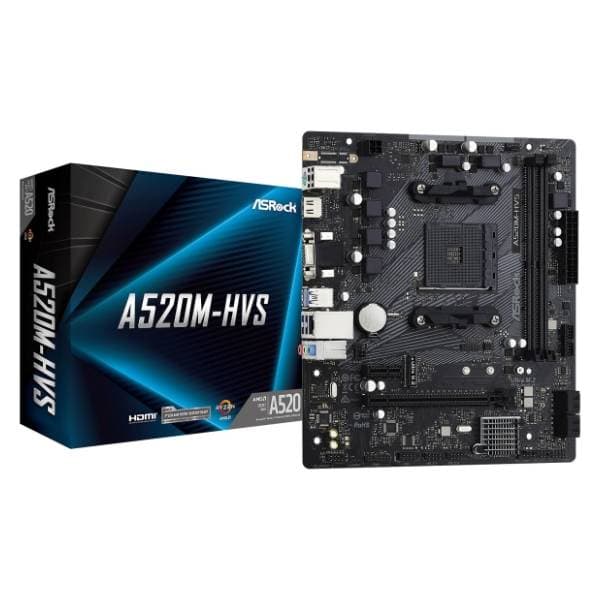

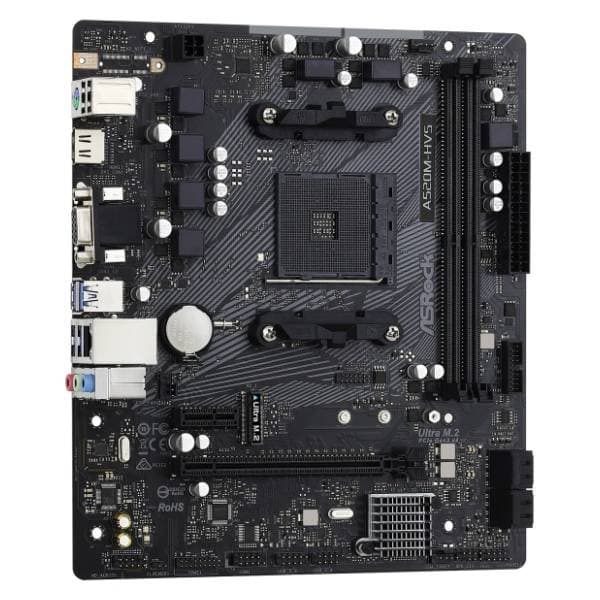

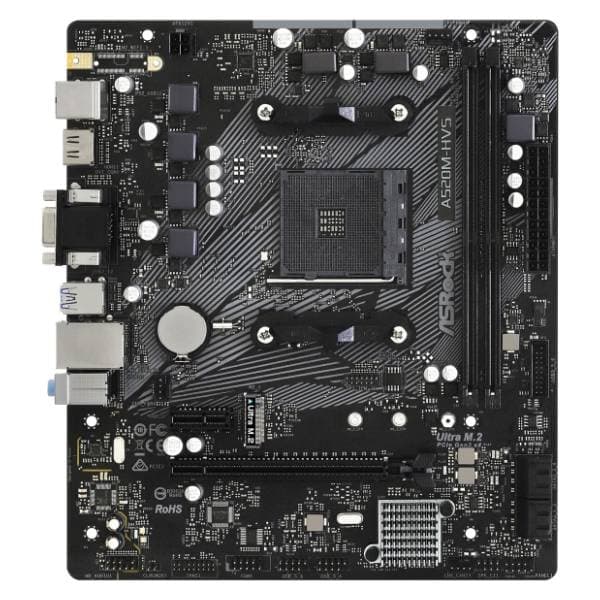

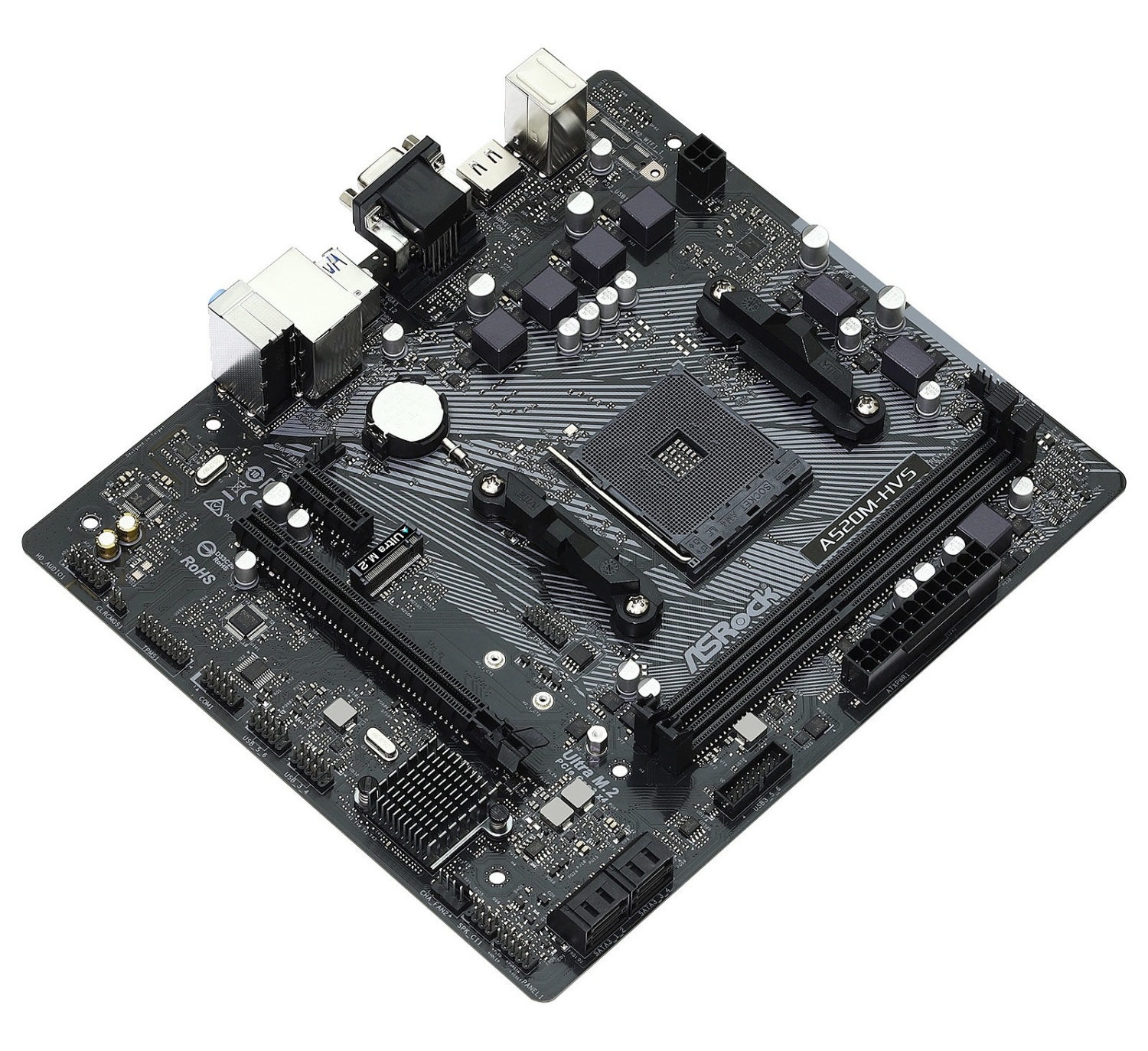

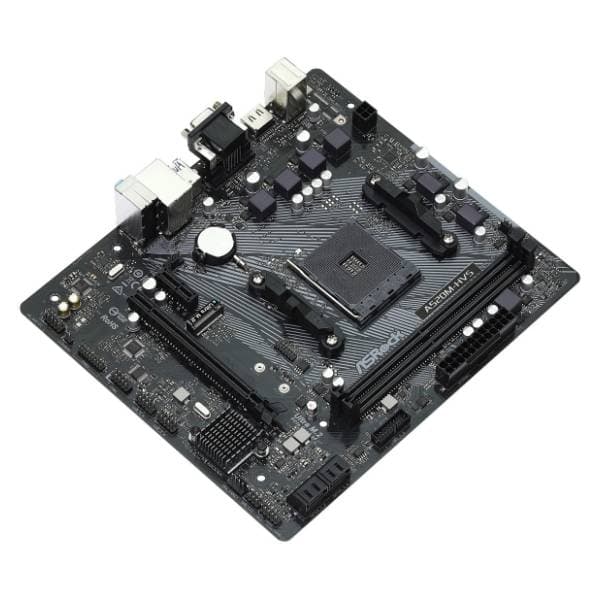

ASRock A520M-HVS matična ploča

Moguća su odstupanja karakteristika proizvoda u zavisnosti od revizije matične ploče
CPU: Supports AMD AM4 Socket Ryzen™ 3000, 4000 G-Series and 5000 and 5000 G-Series Desktop Processors
6 Power Phase design
Memory: Supports Extreme Memory Profile (XMP) memory modules
Unique Feature
ASRock Super Alloy:
Premium 50A Power Choke
Sapphire Black PCB
High Density Glass Fabric PCB
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
Software and UEFI
Software:
ASRock Motherboard Utility (A-Tuning)
ASRock XFast LAN
UEFI:
ASRock Full HD UEFI
ASRock Instant Flash
Hardware Monitor: Temperature Sensing, Fan Tachometer, Fan Multi-Speed Control, CASE OPEN detection, Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

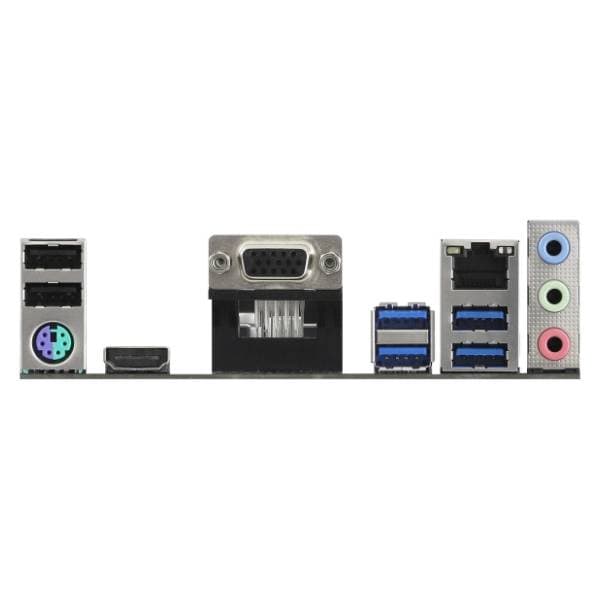

1 x PS/2 Mouse/Keyboard Port
1 x D-Sub Port
1 x HDMI Port
2 x USB 2.0 Ports (Supports ESD Protection)
4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone

1 x SPI TPM Header
1 x COM Port Header
1 x Chassis Intrusion and Speaker Header
1 x CPU Fan Connector (4-pin)
2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector
1 x 4 pin 12V Power Connector
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
