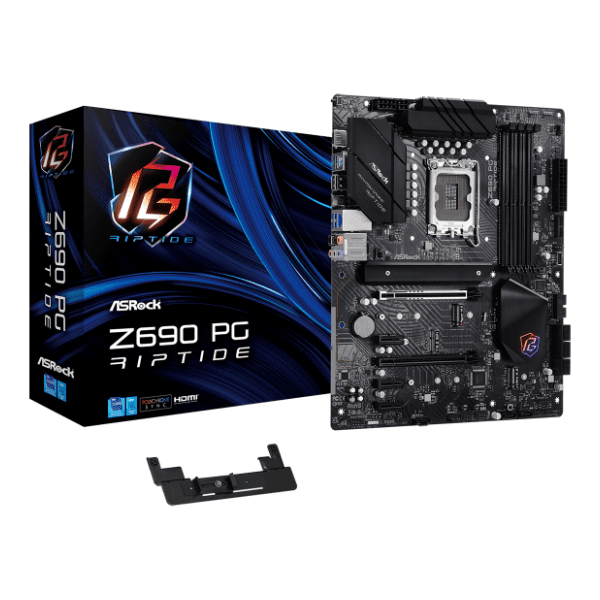

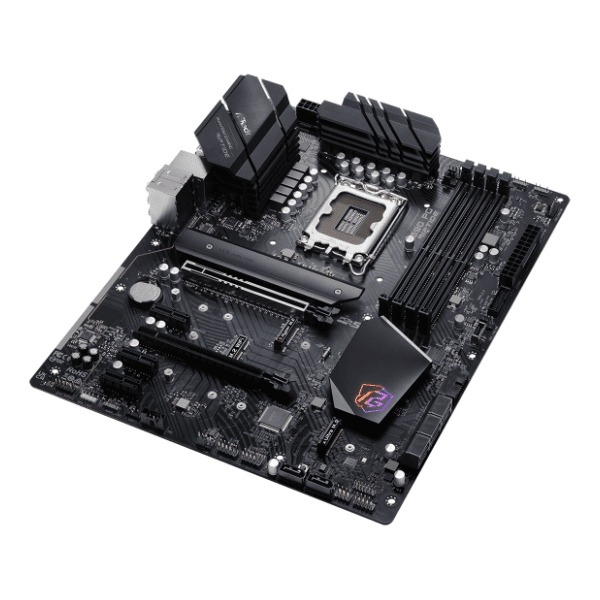

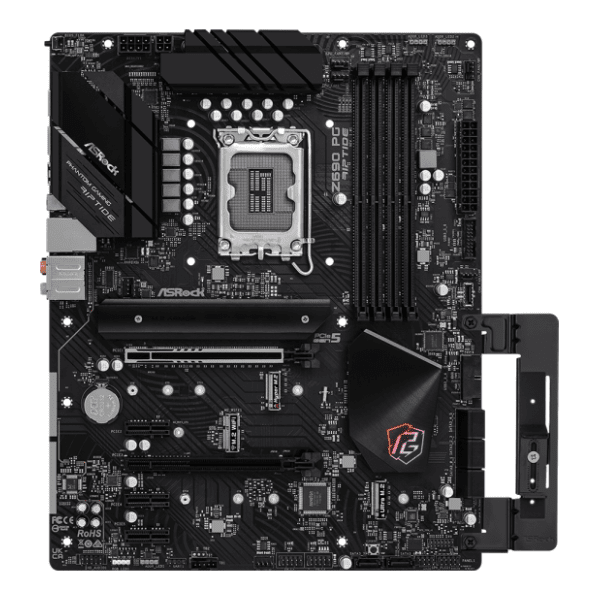

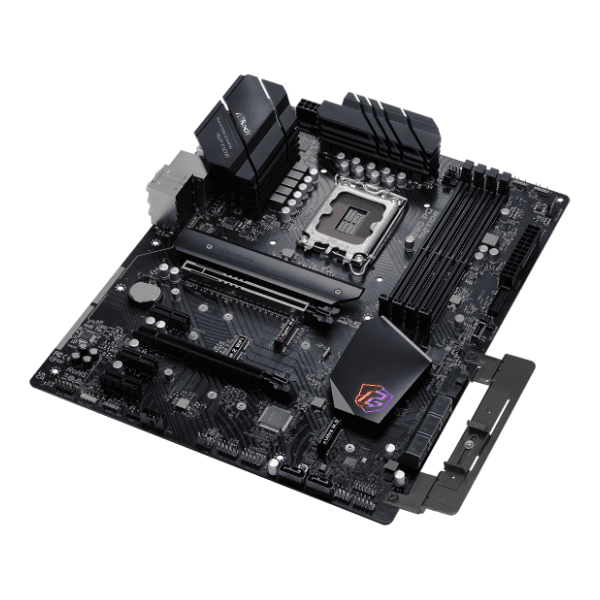

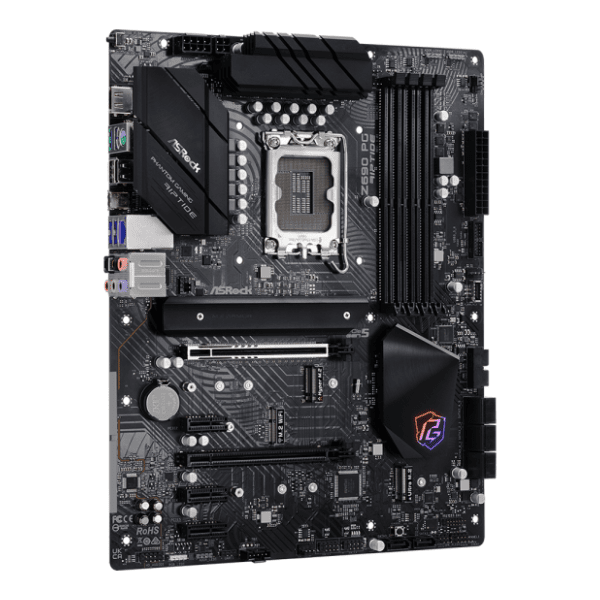

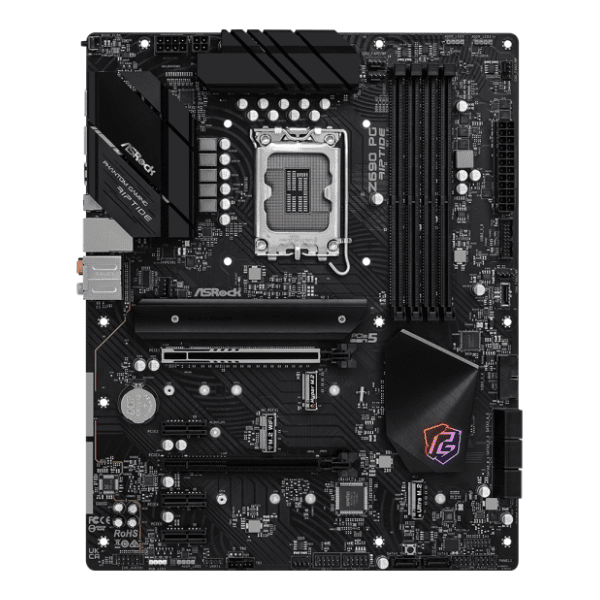

ASRock Z690 PG Riptide matična ploča
Redovne i akcijske cene
Online shop G Store & Repair doo osnovan je u saradnji sa kompanijom Moj servis 011, koja od 2013. godine uspešno posluje na našem tržištu u domenu servisa računara, laptopova, telefona i tableta. Kako se posao razvijao, otvorila se potreba za osnivanjem online prodavnice, kako bismo kupcima omogućili da na najjednostavniji način dođu do proizvoda koji im je potreban, uz najbolji odnos cene i kvaliteta. G Store & Repair doo se bavi uvozom delova i opreme za sve vrste računara, lap topova, telefona, kao i dodatne opreme.
Kretanje cene u prethodnom periodu
Specifikacija i karakteristike
Opšte karakteristike
Težina i dimenzije
Vrsta i karakteristike
Tehničke karakteristike
Procesor
RAM
Software
Zvuk
Grafika
USB
Mreža i konekcija
Slotovi za proširenje
Skladištenje
Ostalo
Moguća su odstupanja karakteristika proizvoda u zavisnosti od revizije matične ploče
CPU: Supports 14th, 13th & 12th Gen Intel® Core™ Processors
13 Phase Dr.MOS Power Design
Supports Intel® Hybrid Technology
Supports Intel® Turbo Boost Max 3.0 Technology
Memory: Supports Intel® Extreme Memory Profile (XMP) 2.0
Slots: 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT)
Multi GPU: Supports AMD CrossFire™
RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
BIOS: CPU Core/Cache, CPU Core/Cache Load-Line, CPU GT, CPU GT Load-Line, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, +1.8V PROC, +1.05V PROC Voltage Multi-adjustment
Unique Feature
ASRock Super Alloy:
XXL Aluminum Alloy Heatsink
Premium Power Choke
Premium Memory Alloy Choke
55A Dr.MOS
Matte Black PCB
ASRock Polychrome SYNC
UEFI:
ASRock EZ Mode
ASRock Full HD UEFI
ASRock My Favorites in UEFI
ASRock Instant Flash
ASRock Easy RAID Installer
Konektori
3 x Antenna Mounting Points
1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
1 x Optical SPDIF Out Port
2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (ReDriver) (Supports ESD Protection)
1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (ReDriver) (Supports ESD Protection)
2 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)
2 x USB 2.0 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
1 x BIOS Flashback Button
HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header
3 x Addressable LED Headers
1 x CPU Fan Connector (4-pin)
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
1 x Front Panel Audio Connector
1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)
1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection)
1 x Clear CMOS Button
