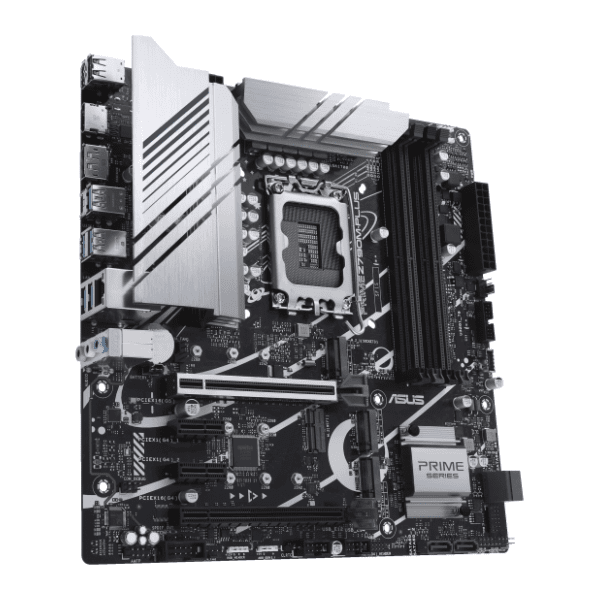

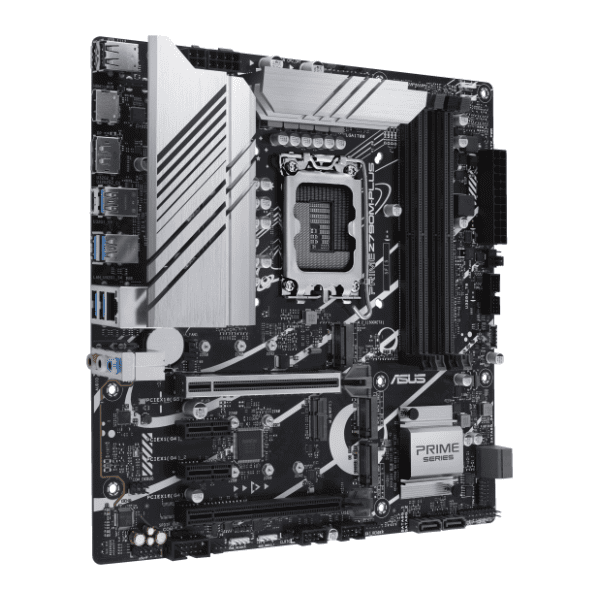

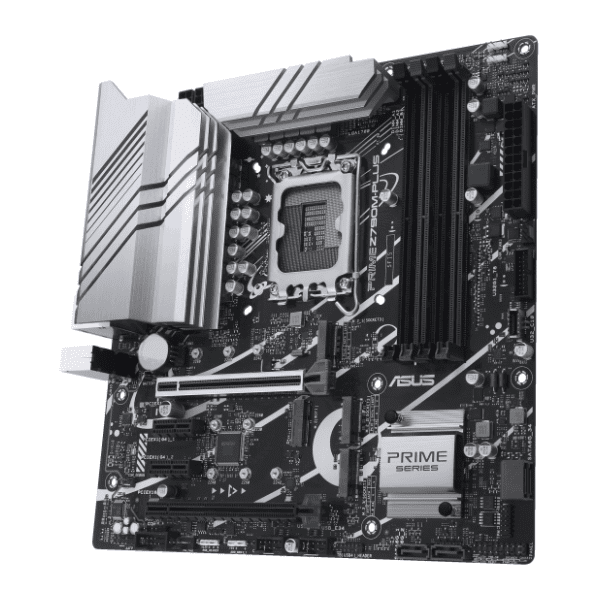

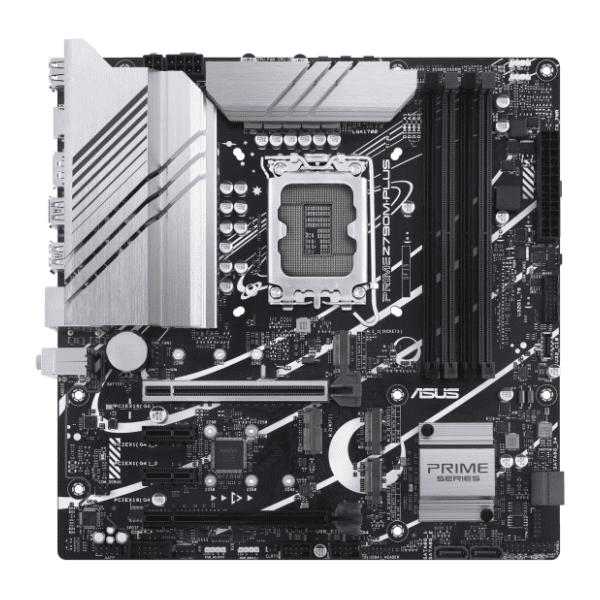

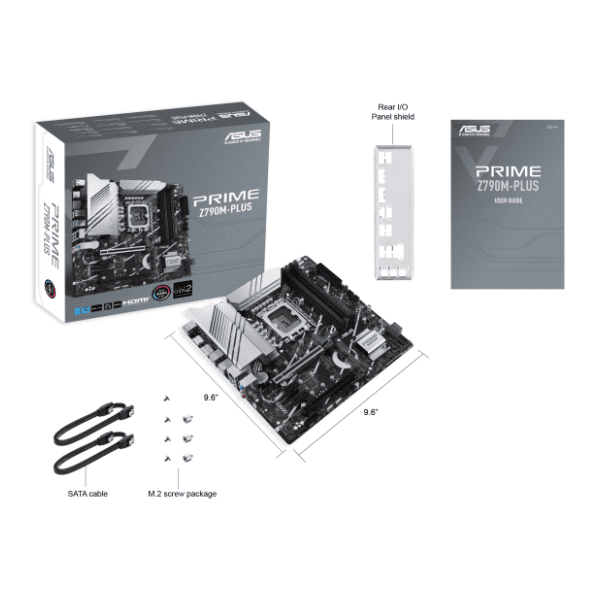

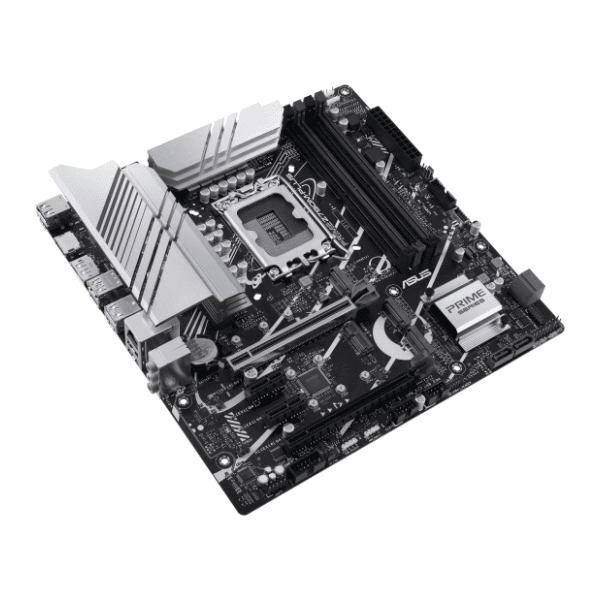

ASUS PRIME Z790M-PLUS matična ploča
Redovne i akcijske cene
Online shop G Store & Repair doo osnovan je u saradnji sa kompanijom Moj servis 011, koja od 2013. godine uspešno posluje na našem tržištu u domenu servisa računara, laptopova, telefona i tableta. Kako se posao razvijao, otvorila se potreba za osnivanjem online prodavnice, kako bismo kupcima omogućili da na najjednostavniji način dođu do proizvoda koji im je potreban, uz najbolji odnos cene i kvaliteta. G Store & Repair doo se bavi uvozom delova i opreme za sve vrste računara, lap topova, telefona, kao i dodatne opreme.
Kretanje cene u prethodnom periodu
Specifikacija i karakteristike
Opšte karakteristike
Težina i dimenzije
Vrsta i karakteristike
Tehničke karakteristike
Procesor
RAM
Software
Zvuk
Grafika
USB
Mreža i konekcija
Slotovi za proširenje
Skladištenje
Ostalo
Moguća su odstupanja karakteristika proizvoda u zavisnosti od revizije matične ploče
CPU: Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0, Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types
Wireless & Bluetooth: M.2 slot only (Key E, CNVi & PCIe)
*Wi-Fi module is sold separately
Memory: Supports Intel® Extreme Memory Profile (XMP), OptiMem II
Expansion Slots: Intel® 13th & 12th Gen Processors
1 x PCIe 5.0 x16 slot
Intel® Z790 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
2 x PCIe 4.0 x1 slots
Audio: Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback
Audio Features
Audio Shielding
Premium audio capacitors
Dedicated audio PCB layers
*A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output
Special Features:
ASUS 5X PROTECTION III
DIGI+ VRM (- Digital power design with DrMOS)
LANGuard
Overvoltage Protection
SafeSlot Core+

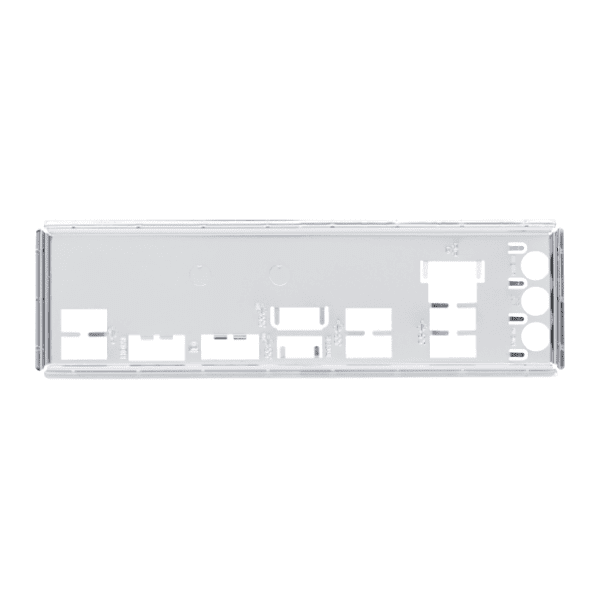

Stainless-Steel Back I/O
ASUS Q-Design:
Q-DIMM
Q-LED Core
Q-Slot
ASUS Thermal Solution:
VRM heatsink design
ASUS EZ DIY
ProCool
Aura Sync:
Aura RGB header
Addressable Gen 2 headers
Software Features:
ASUS Exclusive Software
Armoury Crate
Aura Sync
Fan Xpert 4 (with AI Cooling II)
Power Saving
AI Suite 3
TurboV EVO
DIGI+ VRM
PC Cleaner
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS:
ASUS EZ DIY
ASUS CrashFree BIOS 3
ASUS EZ Flash 3
ASUS UEFI BIOS EZ Mode

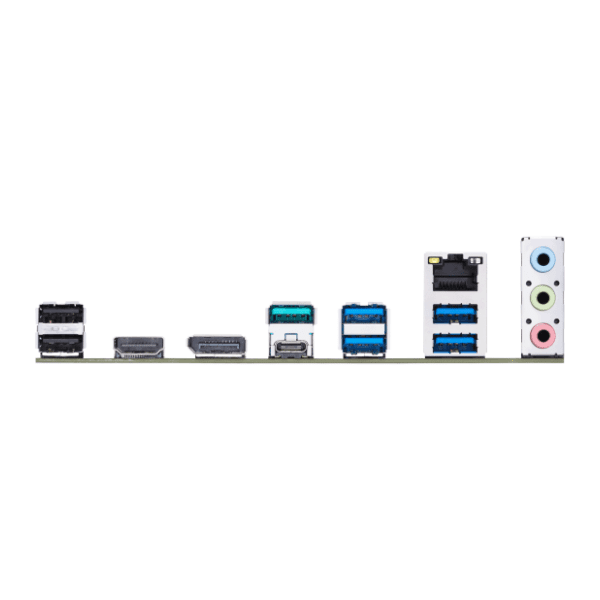

Konektori
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Intel® 1Gb Ethernet port
3 x Audio jacks
Fan and cooling related:
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related:
1 x 24-pin Main Power connector
1 x 8-pin + 12V Power connector
1 x 4-pin + 12V Power connector
Storage related:
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB:
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous:
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x M.2 slot (Key E)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ (USB4®) header
