ASUS ProArt B650-CREATOR matična ploča
Redovne i akcijske cene
Online shop G Store & Repair doo osnovan je u saradnji sa kompanijom Moj servis 011, koja od 2013. godine uspešno posluje na našem tržištu u domenu servisa računara, laptopova, telefona i tableta. Kako se posao razvijao, otvorila se potreba za osnivanjem online prodavnice, kako bismo kupcima omogućili da na najjednostavniji način dođu do proizvoda koji im je potreban, uz najbolji odnos cene i kvaliteta. G Store & Repair doo se bavi uvozom delova i opreme za sve vrste računara, lap topova, telefona, kao i dodatne opreme.
Kretanje cene u prethodnom periodu
Specifikacija i karakteristike
Opšte karakteristike
Težina i dimenzije
Vrsta i karakteristike
Tehničke karakteristike
Procesor
RAM
Software
Zvuk
Grafika
USB
Mreža i konekcija
Slotovi za proširenje
Skladištenje
Ostalo
Moguća su odstupanja karakteristika proizvoda u zavisnosti od revizije matične ploče
Motherboard for content creators
Memory: Supports AMD Extended Profiles for Overclocking (EXPO™)
OptiMem II
Graphics: USB Type-C® port supports DisplayPort output
Wireless & Bluetooth: M.2 slot only (Key E, PCIe), Wi-Fi module is sold separately
Audio: Supports up to 24-Bit/192 kHz playback
Audio Features:
Power pre-regulator
Premium audio capacitors
Dedicated audio PCB layers
Special Features:
ASUS 5X PROTECTION III
DIGI+ VRM
Enhanced DRAM Overcurrent Protection
ESD Guards
Overvoltage Protection
Stainless-Steel Back I/O
ASUS Q-Design:
M.2 Q-Latch
ASUS Thermal Solution:
M.2 heatsinks
VRM heatsink design
ASUS EZ DIY:
BIOS FlashBack™ button
BIOS FlashBack™ LED
AURA Sync
Bespoke Motherboard Design & Business Focused Features
24/7 Reliability
Overcurrent Protection
Front Panel USB 3.2 Gen 2x2 with Quick Charge 4+ Support
Support: up to 60W charging*
Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS
ASUS Exclusive Software
Armoury Crate, AI Suite 3
ASUS CrashFree BIOS 3
ASUS EZ Flash 3

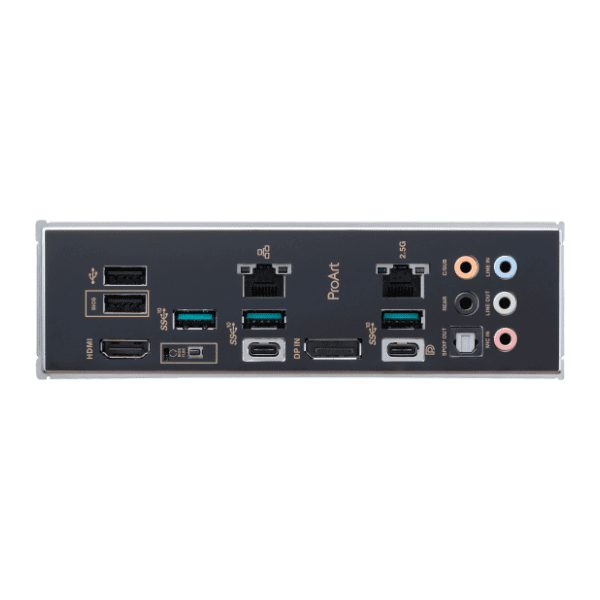

Konektori
1 x USB 3.2 Gen 2 port (1 x USB Type-C®, shared with DisplayPort graphic output )
4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort (Input only)
1 x HDMI® port
1 x Realtek 2.5Gb Ethernet
1 x Realtek 1Gb Ethernet
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
I/O ConnectorsFan and Cooling related:
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related:
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
1 x 6-pin PCIe Power connector
Storage related:
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB:
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous:
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x M.2 slot (Key E)
1 x 20-5 pin System Panel header
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4®) header
