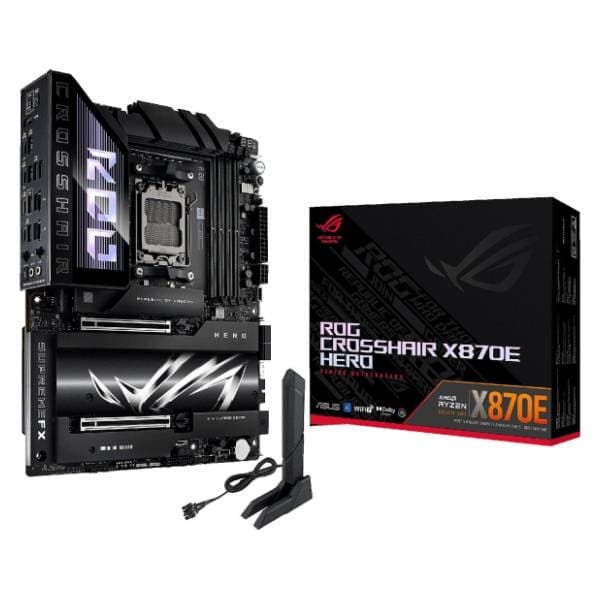

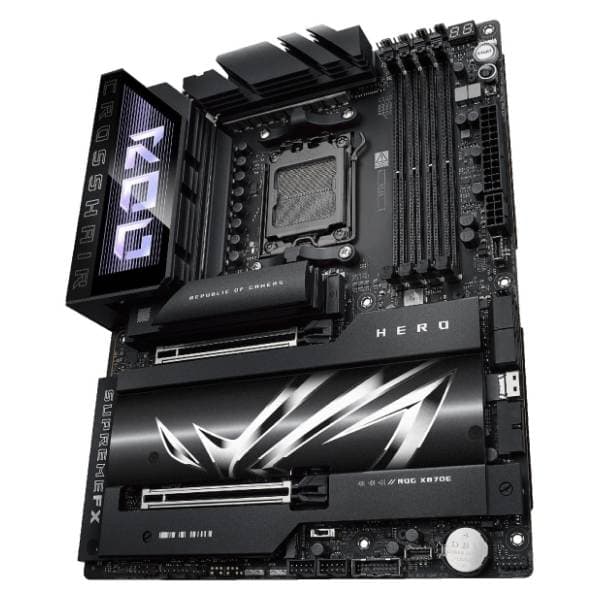

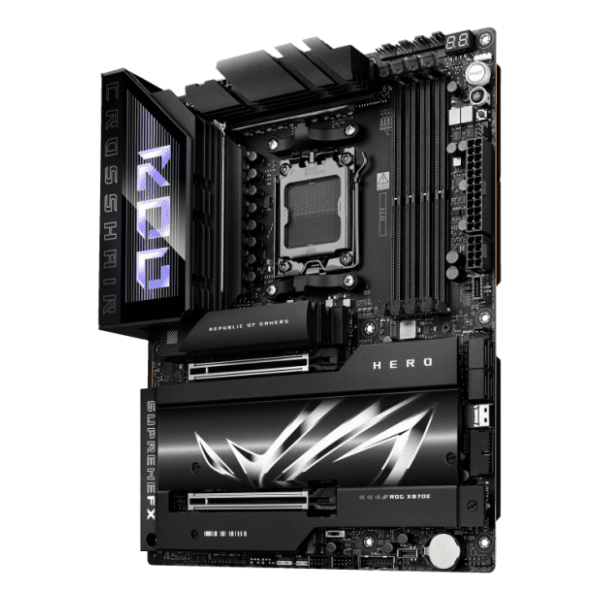

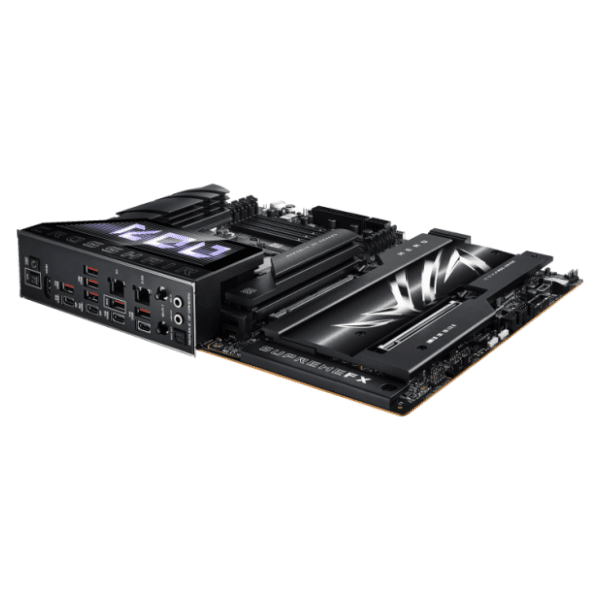

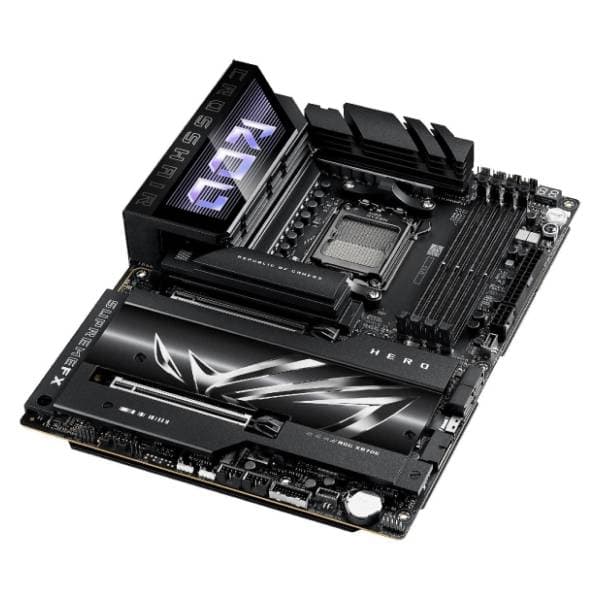

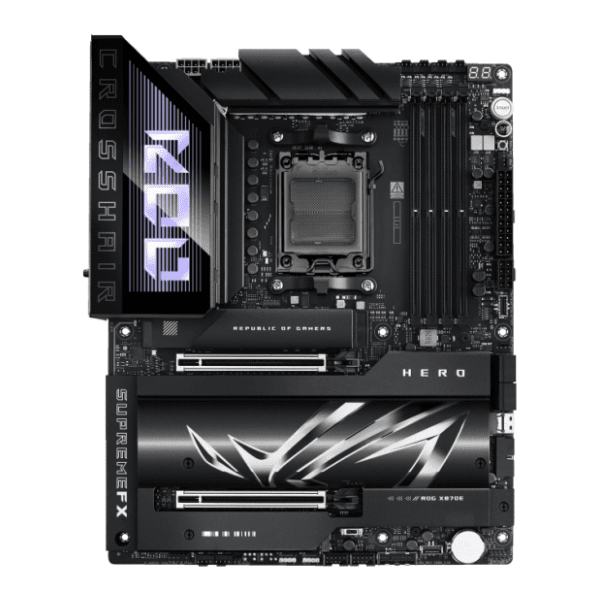

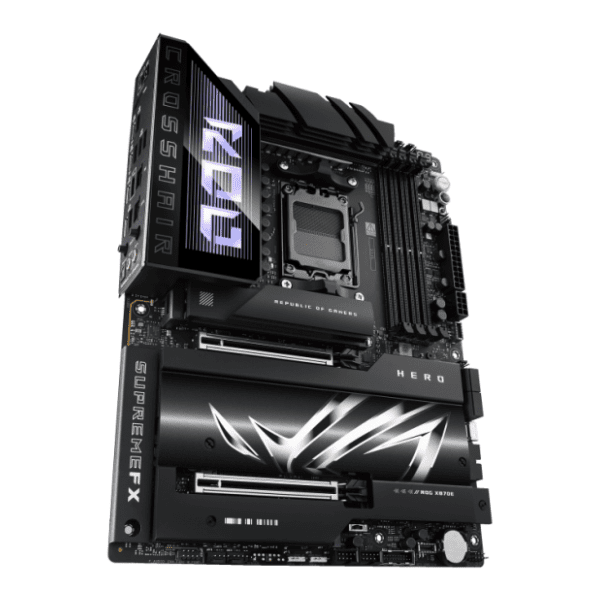

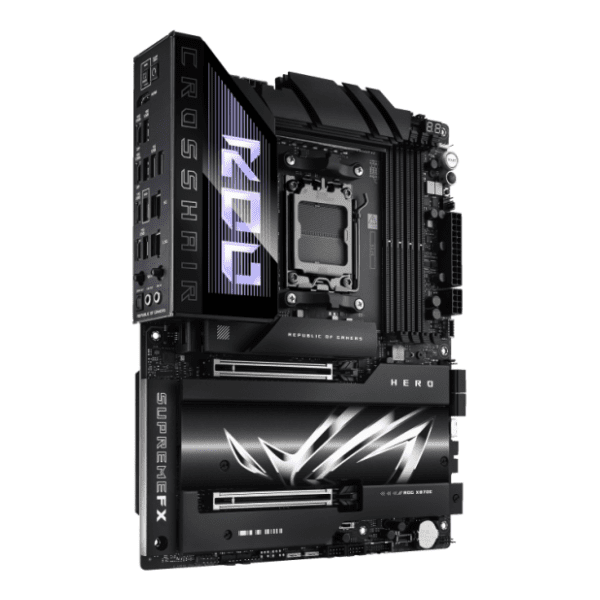

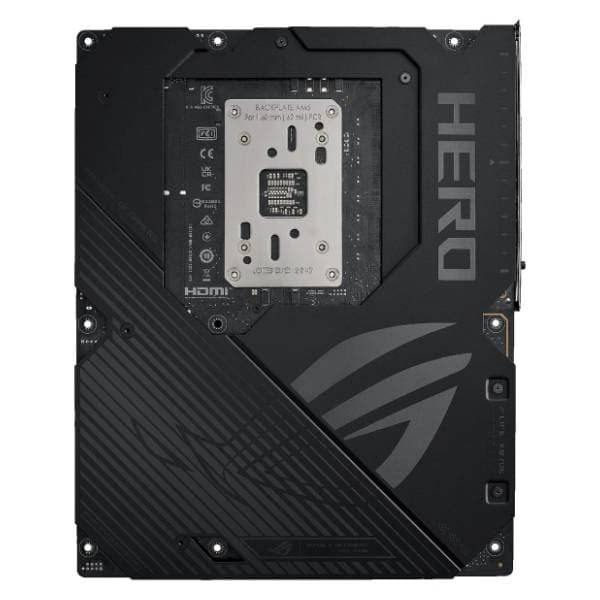

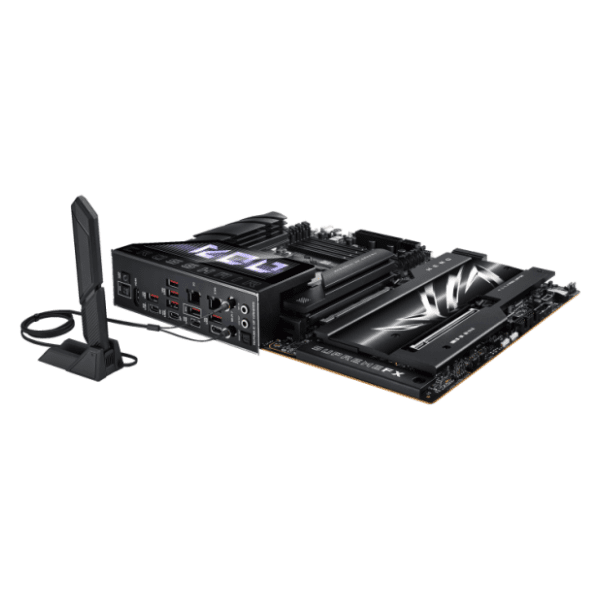

ASUS ROG CROSSHAIR X870E HERO matična ploča

ROG Crosshair X870E Hero matična ploča pruža neprekidno napajanje, robusno upravljanje toplotom, ultra brzu povezivost, sveobuhvatnu podršku za PCIe 5.0 i DDR5 kako bi oslobodio punu snagu AMD Ryzen™ 9000 serije procesora. Tamne nijanse dominiraju dizajnom ove matične ploče, skrećući pažnju na premium metalne teksture, površine presvučene niklom, elegantne konture i stereoskopski vizuelni efekat na velikom M.2 i hladnjaku čipseta. Ova ploča takođe uključuje Polymo Lighting II efekat, unapređeni modul osvetljenja ugrađen u I/O zaštitni okvir, koji pruža dinamičnije RGB osvetljenje za prepoznatljivi ROG logo. Moguća su odstupanja karakteristika proizvoda u zavisnosti od revizije matične ploče ROG Ultimate Power Solution 18(110A)+2(110A)+2 Power Stages CPU: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors Memory: 8200+MT/s(OC) with Ryzen™ 9000 Series Processors, 8600+MT/s(OC) with Ryzen™ 8000 Series Processors, 8000+MT/s(OC) with Ryzen™ 7000 Series Processors, ECC and Non-ECC, Un-buffered Memory Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) NitroPath DRAM Technology ASUS Enhanced Memory Profile (AEMP) Graphics: 2 x USB4® (40Gbps) ports support USB Type-C® display outputs Expansion Slots: AMD Ryzen™ 9000 & 7000 Series Desktop Processors: 2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8 or x8/x4/x4 modes AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors: 2 x PCIe 4.0 x16 slots with Q-Release Slim AMD Ryzen™ 8500 & 8300 Series Desktop Processors: 2 x PCIe 4.0 x16 slots with Q-Release Slim Storage: 1 x SlimSAS connector AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. RAID 5 Function is only supported by AMD Ryzen™ 9000 series CPU Audio: Impedance sense for front and rear headphone outputs Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking High quality 120 dB SNR stereo playback output and 110 dB SNR recording input Supports up to 32-Bit/384 kHz playback on front panel SupremeFX Shielding Technology, Premium audio capacitors, Gold-plated audio jacks Special Features: Extreme OC Kit Extreme Engine Digi+: 10K Black metallic capacitors ASUS Q-Design ASUS Thermal Solution BIOS FlashBack™ button Clear CMOS button Aura Sync Front Panel USB 20Gbps with Quick Charge 4+ Support Support: up to 60W fast charging and USB Wattage Watcher Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A Compatible with PD3.0 and PPS ROG Exclusive Software: ROG CPU-Z. Dolby Atmos ASUS Exclusive Software: Armoury Crate UEFI BIOS: AI Overclocking Guide ASUS EZ DIY: ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode ASUS MyHotkey FlexKey

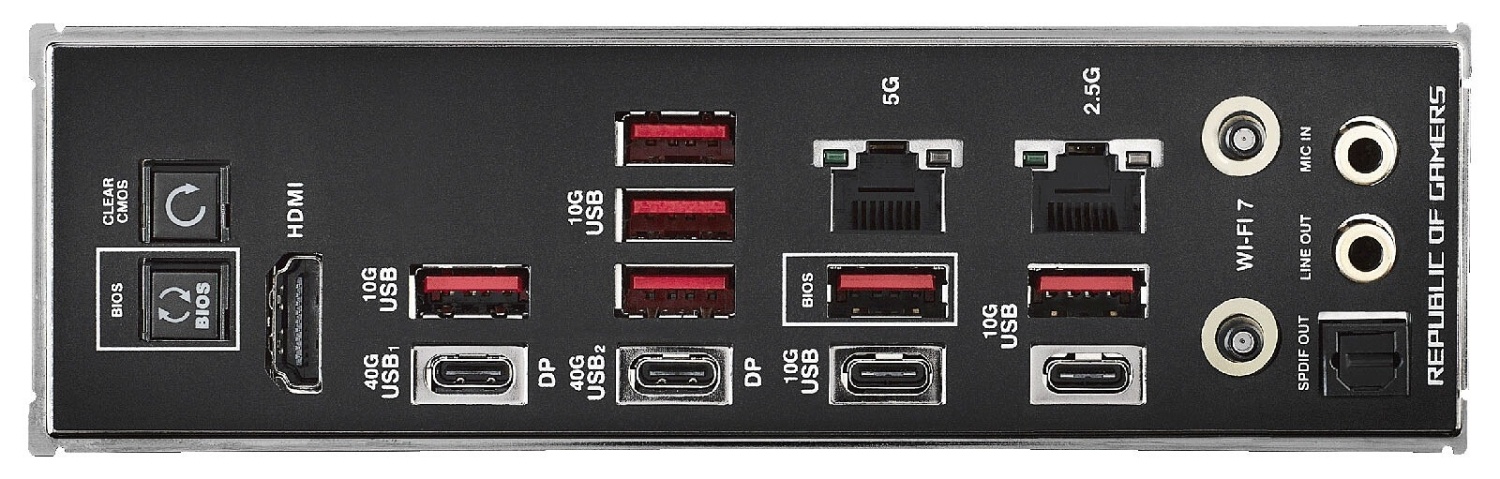

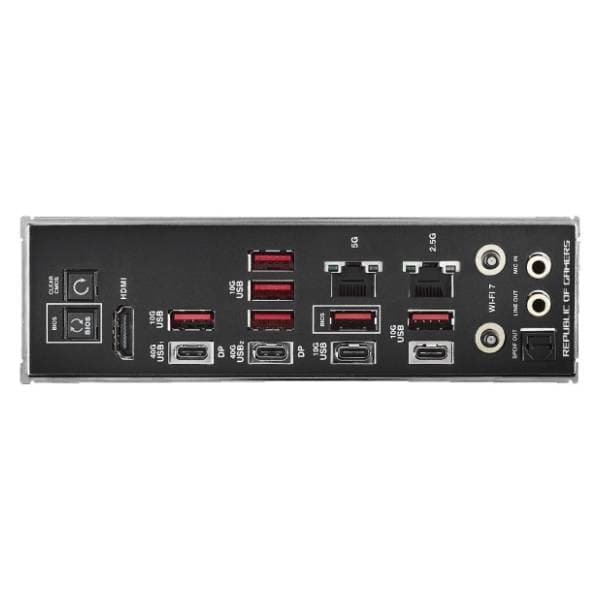

2 x USB4® (40Gbps) ports (2 x USB Type-C®) 8 x USB 10Gbps ports (6 x Type-A + 2 x USB Type-C®) 1 x HDMI™ port 1 x Wi-Fi module 1 x Intel® 2.5Gb Ethernet port 1 x Realtek 5Gb Ethernet port 2 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button

Fan and Cooling Related: 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header Power Related: 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector 1 x 8-pin PCIe Power connector Storage Related: 5 x M.2 slots (Key M) 1 x SlimSAS connector 4 x SATA 6Gb/s ports USB: 2 x USB 20Gbps connectors (support USB Type-C® ) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous: 3 x Addressable Gen2 headers 1 x Alteration PCIe mode switch 1 x FlexKey button 1 x Front Panel Audio header (F_AUDIO) 1 x ReTry button 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header 1 x LN2 Mode jumper
