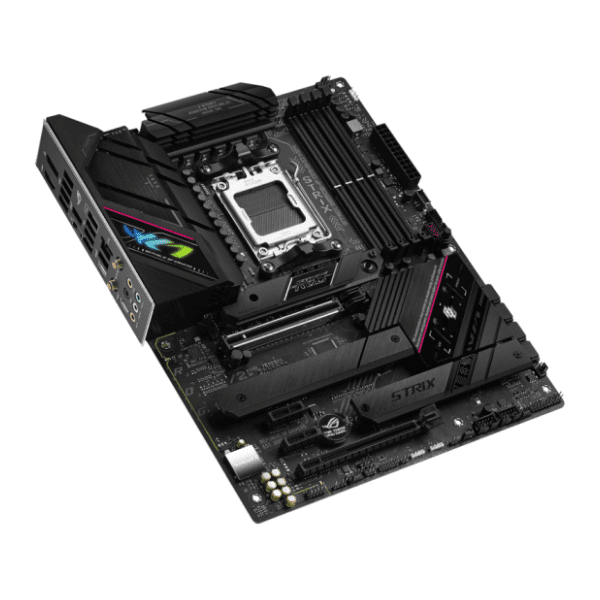

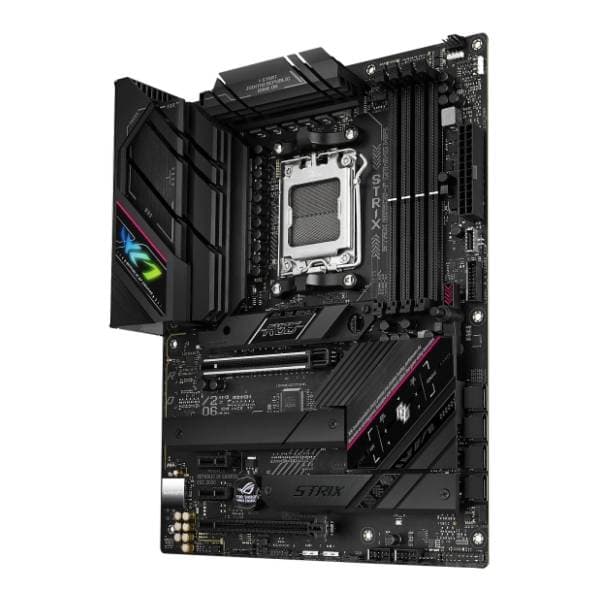

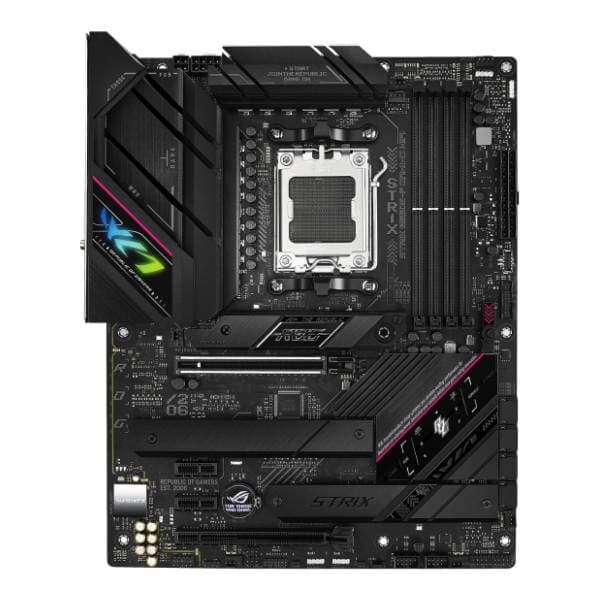

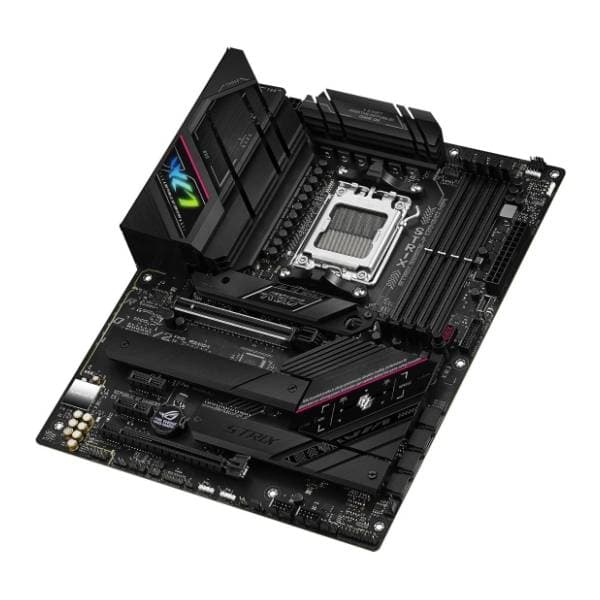

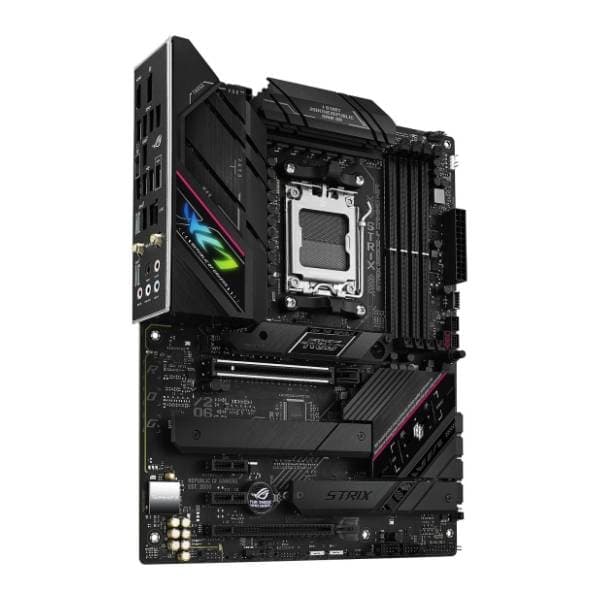

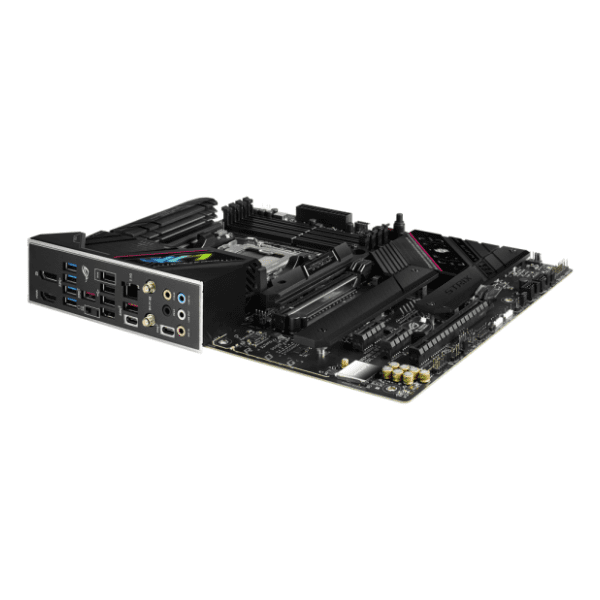

ASUS ROG STRIX B650E-F GAMING WIFI matična ploča
Redovne i akcijske cene
Online shop G Store & Repair doo osnovan je u saradnji sa kompanijom Moj servis 011, koja od 2013. godine uspešno posluje na našem tržištu u domenu servisa računara, laptopova, telefona i tableta. Kako se posao razvijao, otvorila se potreba za osnivanjem online prodavnice, kako bismo kupcima omogućili da na najjednostavniji način dođu do proizvoda koji im je potreban, uz najbolji odnos cene i kvaliteta. G Store & Repair doo se bavi uvozom delova i opreme za sve vrste računara, lap topova, telefona, kao i dodatne opreme.
Kretanje cene u prethodnom periodu
Specifikacija i karakteristike
Opšte karakteristike
Težina i dimenzije
Vrsta i karakteristike
Tehničke karakteristike
Procesor
RAM
Software
Zvuk
Grafika
USB
Mreža i konekcija
Slotovi za proširenje
Skladištenje
Ostalo
Moguća su odstupanja karakteristika proizvoda u zavisnosti od revizije matične ploče
CPU: AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors
Memory: Supports AMD EXTended Profiles for Overclocking (EXPO™)
OptiMem II
Expansion Slots:
AMD Ryzen™ 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot
AMD B650 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)*
2 x PCIe 4.0/3.0 x1 slots
*PCIe 4.0 x16 slot (supports x4 mode) from AMD B650 Chipset shares bandwidth with M.2_3
Storage: AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
*M.2_3 slot shares bandwidth with PCIe 4.0 x16 slot (supports x4 mode) When M.2_3 slot is operating in PCIe mode, M.2_3 will be disabled
Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
Impedance sense for front and rear headphone outputs
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
Supports up to 32-Bit/384 kHz playback
Audio Features:
SupremeFX Shielding Technology
Savitech SV3H712 AMP
Rear optical S/PDIF out port
Premium audio capacitors
Audio cover

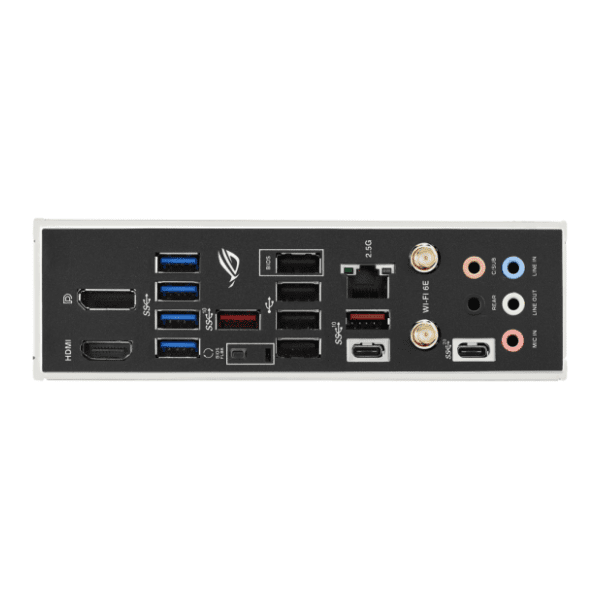

Konektori
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI® port

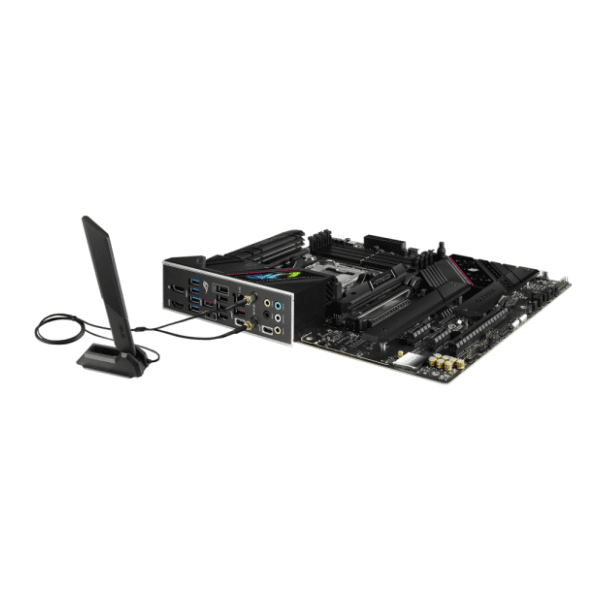

1 x Wi-Fi Module
1 x Intel® I225-V 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack™ button
Fan and Cooling related:
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related:
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related:
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB:
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers supports additional 4 USB 2.0 ports
Miscellaneous:
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt™header
1 x COM_DEBUGheader
