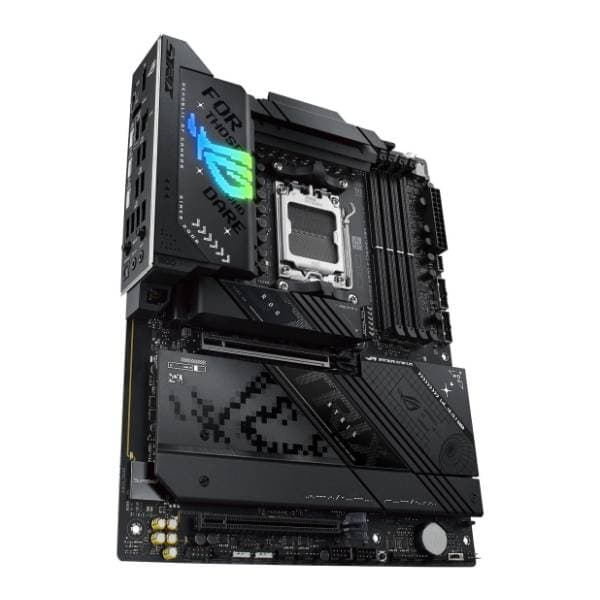

ASUS ROG STRIX X870-F GAMING WIFI matična ploča

ROG Strix X870-F Gaming WiFi matična ploča je napravljena da dominira uz AMD Ryzen™ 9000 seriju desktop procesora. Napredni dizajn napajanja i AI rešenja obezbeđuju vrhunske performanse, dok dvostruki USB4® portovi, WiFi 7 i brzi DDR5 slotovi pružaju najnovije opcije povezivanja. Ova matična ploča isporučuje snagu i brzinu neophodnu za vrhunsko gejming iskustvo i zahteve naprednih AI PC aplikacija. Moguća su odstupanja karakteristika proizvoda u zavisnosti od revizije matične ploče 16 + 2 + 2 power solution rated for up to 110A per stage CPU: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors Memory: Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC, Un-buffered memory Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) Graphics: 2 x USB4® (40Gbps) ports support USB Type-C® display outputs Expansion Slots: AMD Ryzen™ 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) AMD X870 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) Storage: AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen™ 9000 series CPU Audio: Impedance sense for front and rear headphone outputs Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking High quality 120 dB SNR stereo playback output and 110 dB SNR recording input Supports up to 32-Bit/384 kHz playback on front panel SupremeFX Shielding Technology, Premium audio capacitors, Audio cover Special Features: Extreme Engine Digi+: 5K Black metallic capacitors ASUS Q-Design ASUS Thermal Solution BIOS FlashBack™ button BIOS FlashBack™ LED Clear CMOS button ROG Exclusive Software: ROG CPU-Z. Dolby Atmos ASUS Exclusive Software: Armoury Crate UEFI BIOS: AI Overclocking Guide ASUS EZ DIY: ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode ASUS MyHotkey Dynamic OC Switcher, FlexKey

2 x USB4® (40Gbps) ports (2 x USB Type-C® with DP Alt mode) 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C® with up to 30W PD Fast-charge)** 4 x USB 5Gbps ports (4 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Intel® 2.5Gb Ethernet 2 x Audio jacks  1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button  1 x Clear CMOS button 

Fan and Cooling Related: 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power Related: 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related: 4 x M.2 slots (Key M) 2 x SATA 6Gb/s ports USB: 1 x USB 20Gbps connector (supports USB Type-C®) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous: 3 x Addressable Gen 2 headers 1 x Alteration PCIe mode switch 1 x Chassis Intrusion header 1 x CPU Over voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header
