ASUS TUF GAMING B550-PLUS matična ploča

Moguća su odstupanja karakteristika proizvoda u zavisnosti od revizije matične ploče
CPU: AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
Memory: ECC Memory (ECC mode) support varies by CPU
Multi-GPU Support: Supports AMD 2-Way CrossFireX Technology
Wireless Data Network: M.2 slot only (Key E) (Support PCIe interface)
*Wi-Fi module is sold separately
Audio: Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature:
Exclusive DTS Custom for GAMING Headsets.
Optical S/PDIF out port(s) at back panel
Audio cover
Audio Shielding
Dedicated audio PCB layers
Premium audio capacitors
Asus Special Features:
ASUS TUF PROTECTION
ASUS DIGI+ VRM (Digital power design with Dr. MOS)
ASUS Enhanced DRAM Overcurrent Protection
ASUS ESD Guards
TUF LANGuard
ASUS Overvoltage Protection
ASUS SafeSlot
ASUS Stainless-Steel Back I/O
ASUS Q-Design
ASUS Q-DIMM
ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
ASUS Q-Slot
ASUS Thermal Solution
Aluminum M.2 heatsink
ASUS EZ DIY
BIOS FlashBack™ button
BIOS FlashBack™ LED
Procool
AURA Sync
Standard RGB headers
Addressable Gen 2 RGB header
ASUS Exclusive Software
Armoury Crate
Aura Creator
Aura Sync
AI Noise Cancelling Microphone
AI Suite 3
Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert 2+
EZ update
TUF GAMING CPU-Z
AI Charger
ASUS Turbo LAN
DAEMON Tools
DTS Custom for GAMING Headsets
Norton Anti-virus software (Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
ASUS CrashFree BIOS 3
ASUS EZ Flash 3
ASUS UEFI BIOS EZ Mode

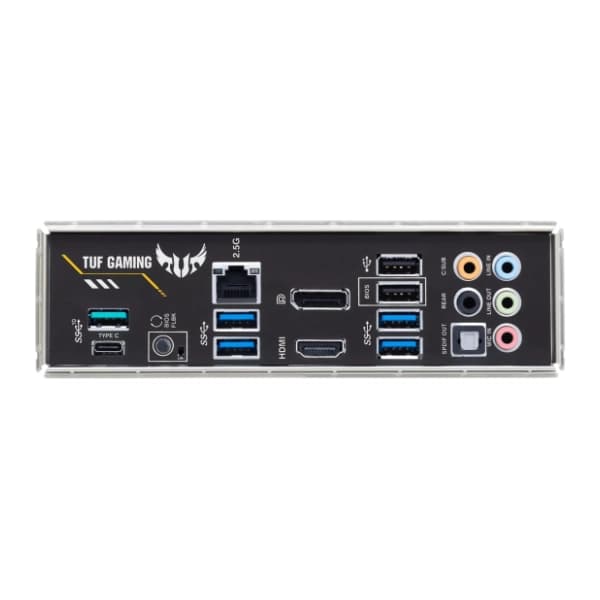

1 x DisplayPort
1 x HDMI
1 x LAN (2.5G) port(s)
2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®)
4 x USB 3.2 Gen 1 (blue) Type-A
2 x USB 2.0 (one port can be switched to USB BIOS FlashBack™)
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x BIOS FlashBack™ Button(s)

1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
2 x Aura RGB Strip Headers
1 x Addressable Gen 2 header(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 with E key for Wi-Fi module
1 x SPI TPM header
6 x SATA 6Gb/s connector(s)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header
