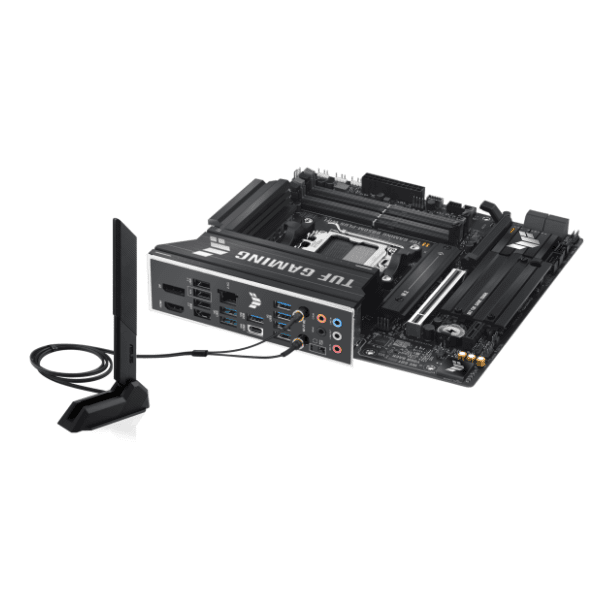

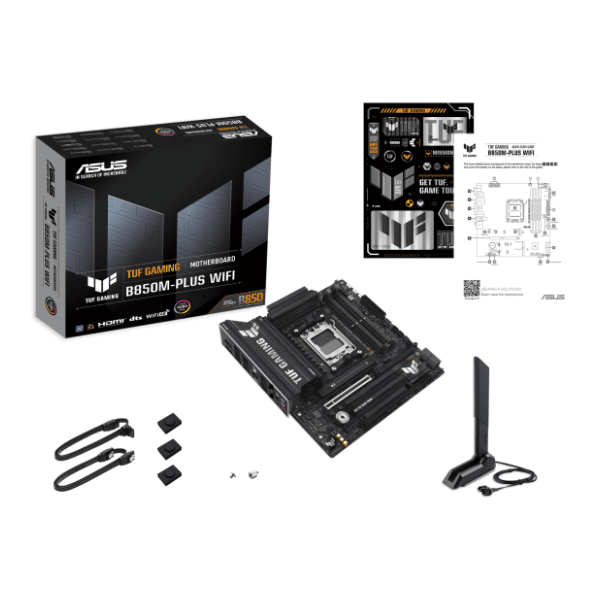

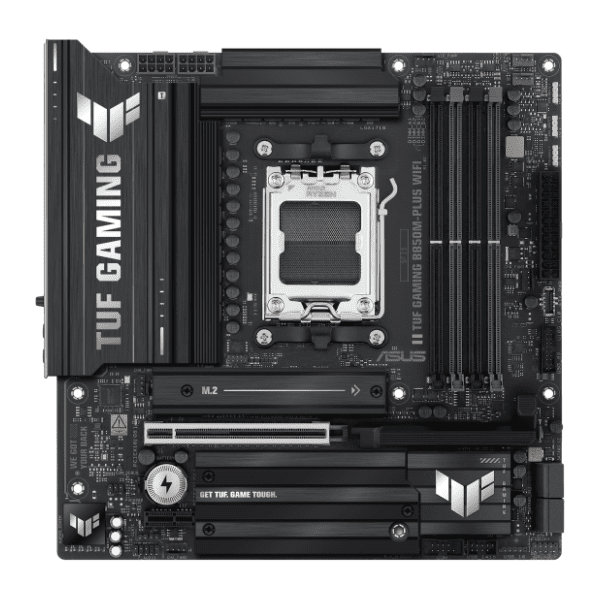

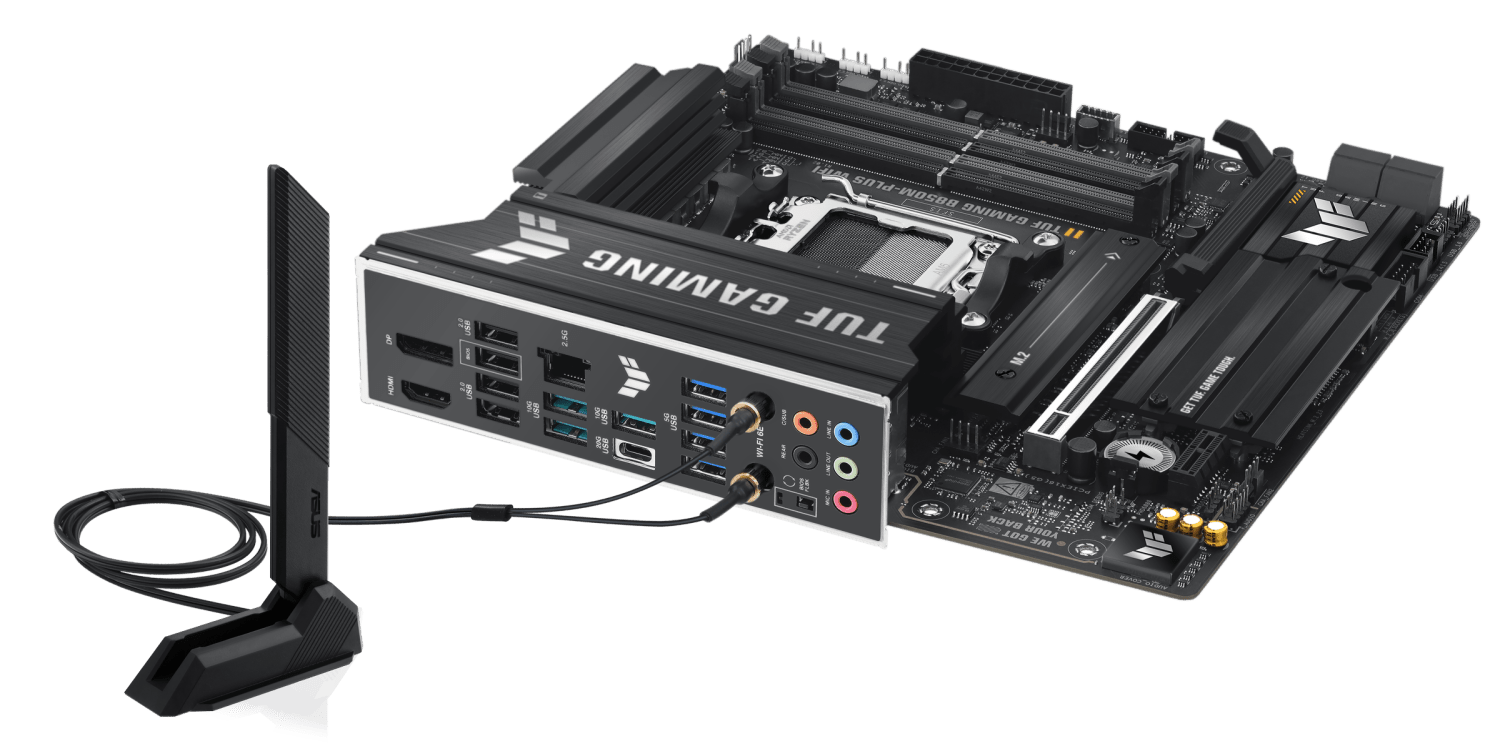

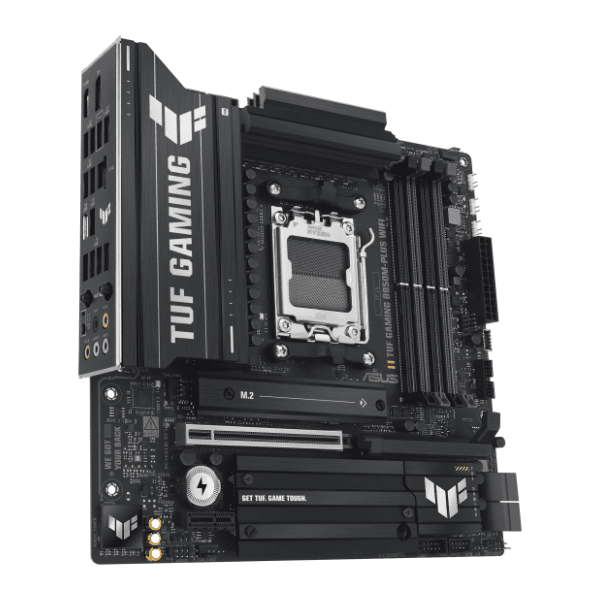

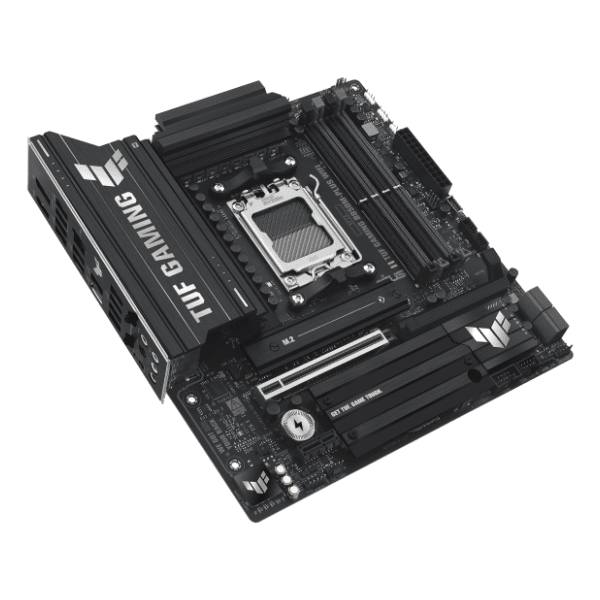

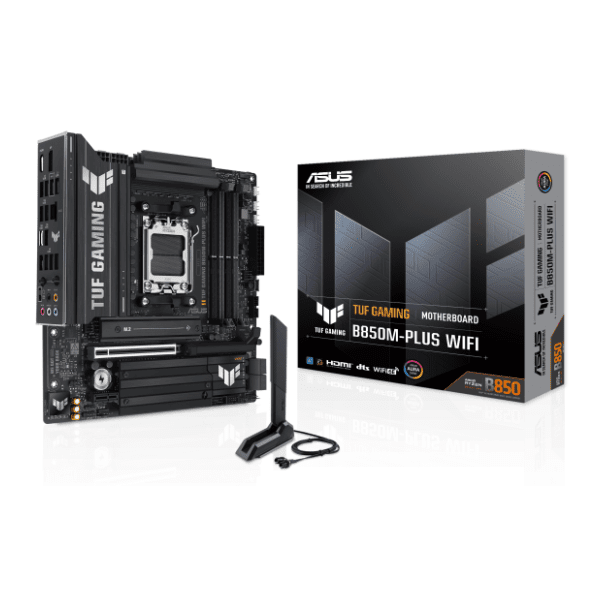

ASUS TUF GAMING B850M-PLUS WIFI matična ploča

ASUS TUF GAMING B850M-PLUS WIFI matična ploča uzima sve ključne elemente najnovijih AMD Ryzen™ procesora i kombinuje ih sa funkcijama spremnim za igre i dokazanom izdržljivošću. Dizajnirana sa komponentama vojnog ranga, unapređenim naponskim rešenjem i sveobuhvatnim sistemom hlađenja, ova matična ploča nadmašuje očekivanja pružajući stabilne performanse. TUF GAMING matične ploče prolaze rigorozna testiranja izdržljivosti kako bi se osiguralo da mogu izdržati uslove u kojima druge mogu zakazati. Ova platforma pruža snagu i povezivost koju zahtevaju napredne AI PC aplikacije. Stabilno napajanje je ključno za maksimalne performanse AMD procesora. Matična ploča je dizajnirana da zadovolji potrebe procesora sa velikim brojem jezgara. Opremljena je sa 14(80A) + 2(80A) + 1(80A) naponskim stepenima koji integrišu MOSFET-ove visokog i niskog napona, zajedno sa drajverima u paketima ocenjenim na do 80A svaki. Ova konfiguracija obezbeđuje optimalnu isporuku snage, efikasnost, stabilnost i performanse za trenutne i buduće AMD procesore. Moguća su odstupanja karakteristika proizvoda u zavisnosti od revizije matične ploče CPU: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors Memory: Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) Graphics: Supports max. 8K@30Hz as specified in DisplayPort 1.4 Supports 4K@60Hz as specified in HDMI 2.1 Expansion Slots: AMD Ryzen™ 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) AMD B850 Chipset 1 x PCIe 4.0 x1 slot Storage: AMD RAIDXpert2 Technology Ryzen™ 9000 Series Processors: RAID 0/1/5/10 Ryzen™ 8000 Series Processors: RAID 0/1 Ryzen™ 7000 Series Processors: RAID 0/1/10 Audio: Impedance sense for front and rear headphone outputs Internal audio Amplifier to enhance the highest quality sound for headphone and speakers Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) Supports up to 32-Bit/192 kHz playback Audio Features: Audio Shielding Premium audio capacitors Dedicated audio PCB layers Audio cover Unique de-pop circuit Special Features: ASUS TUF PROTECTION DIGI+ VRM (- Digital power design with DrMOS) ESD Guards TUF LANGuard Overvoltage protection SafeSlot Stainless-steel back I/O ASUS Q-Design ASUS Thermal Solution: M.2 heatsink VRM heatsink design ASUS EZ DIY BIOS FlashBack™ button BIOS FlashBack™ LED ProCool Pre-mounted I/O shield SafeDIMM Aura Sync: Addressable Gen2 headers ASUS Exclusive Software Armoury Crate UEFI BIOS: ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode ASUS MyHotkey

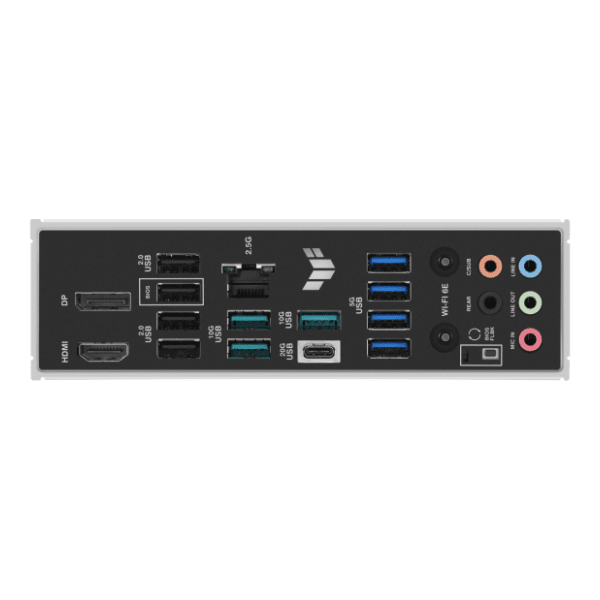

1 x USB 20Gbps port (1 x USB Type-C®) 3 x USB 10Gbps ports (3 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack™ button

Fan and Cooling Related: 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power Related: 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related: 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB: 1 x USB 10Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports Miscellaneous: 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front Panel System header
