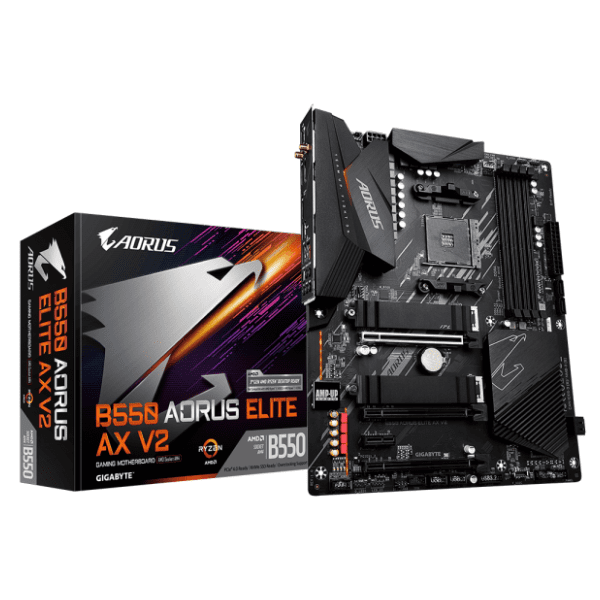

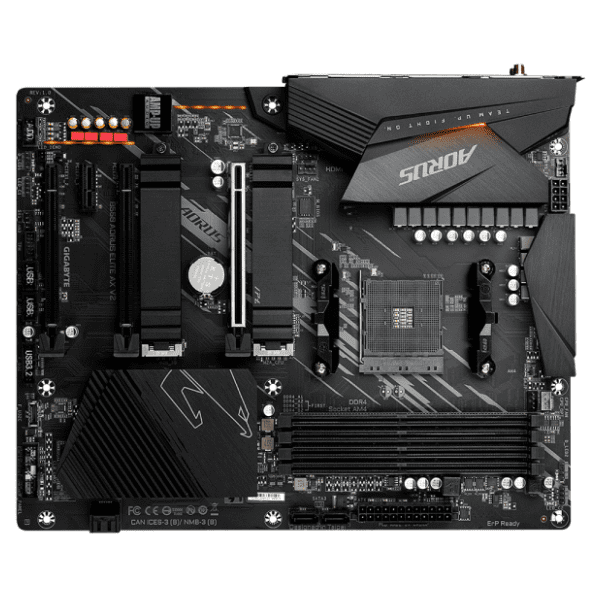

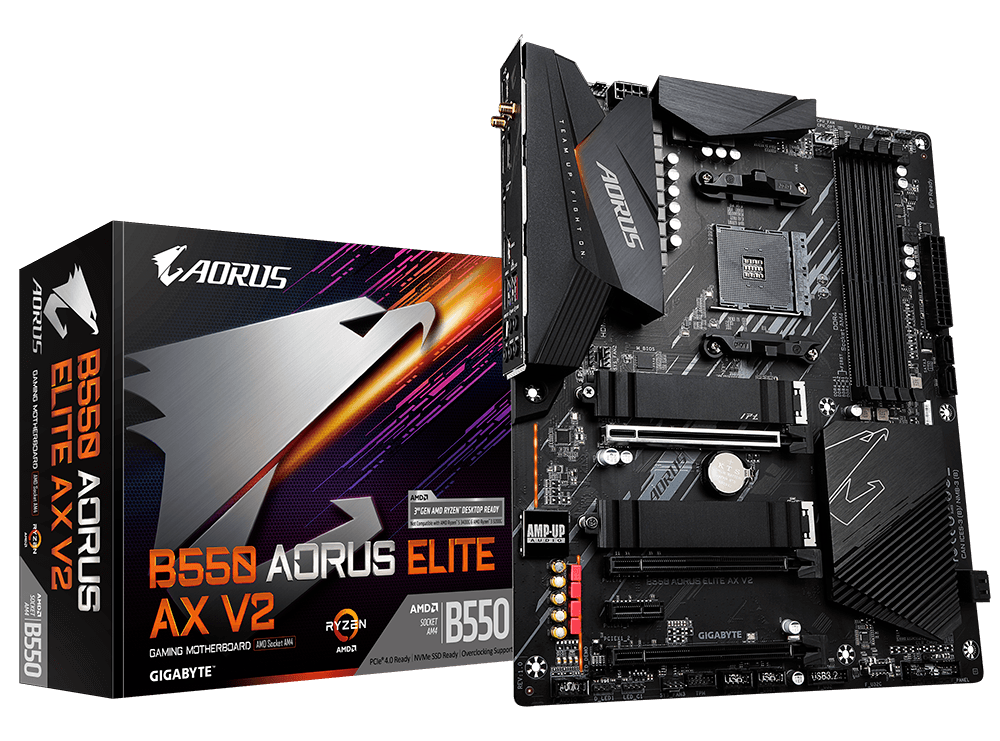

GIGABYTE B550 AORUS ELITE AX V2 (rev. 1.x) matična ploča
Redovne i akcijske cene
Online shop G Store & Repair doo osnovan je u saradnji sa kompanijom Moj servis 011, koja od 2013. godine uspešno posluje na našem tržištu u domenu servisa računara, laptopova, telefona i tableta. Kako se posao razvijao, otvorila se potreba za osnivanjem online prodavnice, kako bismo kupcima omogućili da na najjednostavniji način dođu do proizvoda koji im je potreban, uz najbolji odnos cene i kvaliteta. G Store & Repair doo se bavi uvozom delova i opreme za sve vrste računara, lap topova, telefona, kao i dodatne opreme.
Kretanje cene u prethodnom periodu
Specifikacija i karakteristike
Opšte karakteristike
Težina i dimenzije
Vrsta i karakteristike
Tehničke karakteristike
Procesor
RAM
Software
Zvuk
Grafika
USB
Mreža i konekcija
Slotovi za proširenje
Skladištenje
Ostalo
Moguća su odstupanja karakteristika proizvoda u zavisnosti od revizije matične ploče
Expansion Slots:
AMD Ryzen™ 5000 Series* and Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode
AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support PCIe 3.0 x16 mode
Wi-Fi module: Intel® Wi-Fi 6 AX200, BT 5.0 (for PCB rev. 1.0), AMD Wi-Fi 6E RZ608 (PCB rev. 1.2), Intel® Wi-Fi 6E AX210 (PCB rev. 1.3)
12+2 Phases Digital Twin Power Design with 50A DrMOS
Advanced Thermal Design with Enlarged Surface Heatsinks
Ultra Durable™ PCIe 4.0 x16 Slot
Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Dual Thermal Guards
AMP-UP Audio with ALC1200 and WIMA Capacitors
RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
H/W Monitoring:
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Overheating warning
Fan fail warning
Fan speed control
Unique Features:
Support for APP Center
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install

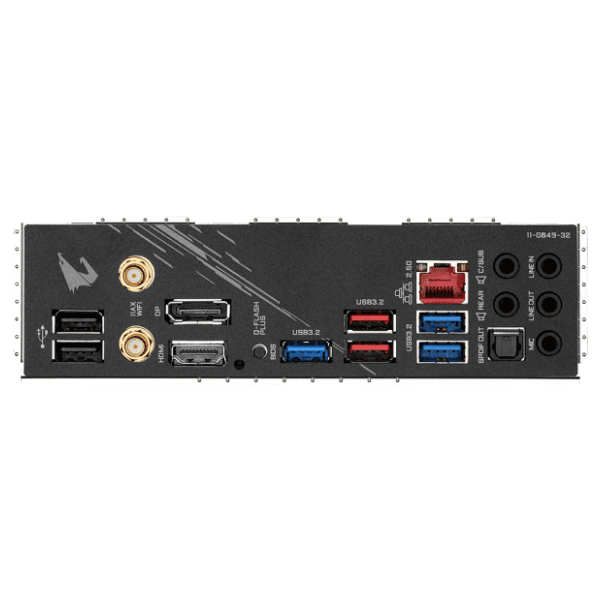

Konektori
1 x DisplayPort
1 x HDMI port
2 x SMA antenna connectors (2T2R)
2 x USB 3.2 Gen 2 Type-A ports (red)
3 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x Q-Flash Plus button
1 x RJ-45 port
1 x optical S/PDIF Out connector
5 x audio jacks
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x CPU cooler LED strip/RGB LED strip header
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x front panel header
1 x front panel audio header
1 x USB Type-C™ port, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper
