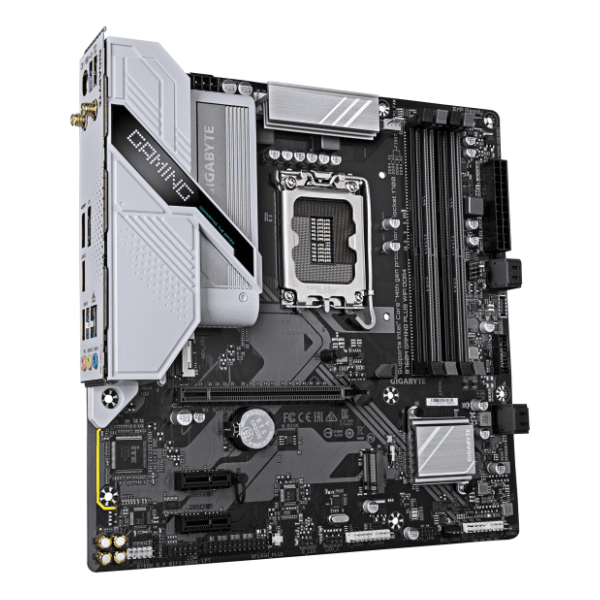

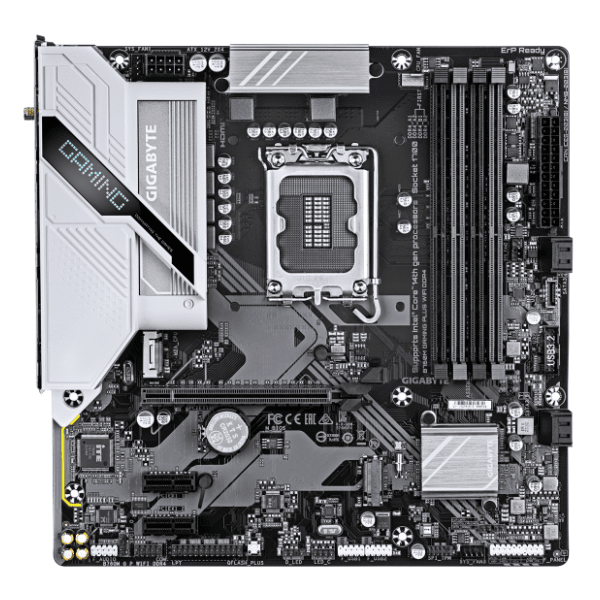

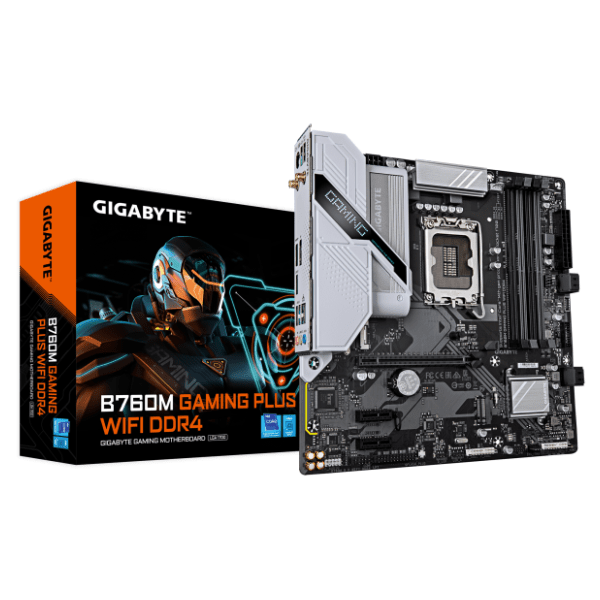

GIGABYTE B760M GAMING PLUS WIFI DDR4 (rev. 1.0) matična ploča
Cena: 13.385RSD
1
0 (0)
Tip
Intel
Format matične ploče
Micro ATX
Tip RAM memorije
DDR4
Gaming
Redovne i akcijske cene
Dostava "preko praga". Poručeni uređaj će biti dostavljen direktno u vaš dom.
Plaćanje gotovinom prilikom preuzimanja paketa
Dostava za celu Srbiju
Plaćanje preko računa / virmanski
Mogućnost plaćanjem kreditnim karticama na rate.
Kretanje cene u prethodnom periodu
Potrebno je da se prijavite kako biste mogli da vidite grafikon.
Prijavite seSpecifikacija i karakteristike
Opšte karakteristike
Težina i dimenzije
Širina
24,4cm
Visina
24,4cm
Vrsta i karakteristike
Gaming
Format matične ploče
Micro ATX
Tehničke karakteristike
Procesor
Tip
Intel
Socket (Baza)
Intel 1700
Serija čipseta
Intel B760
Integrisan procesor
Broj socket-a
1
RAM
Brzina prenosa
2.133MT/s
5.333MT/s
Tip RAM memorije
DDR4
Broj RAM slotova
4
Maksimalna RAM memorija
128GB
Software
Kompatibilnost
Windows 10 64-bit
Windows 11 64-bit
BIOS
1 x 128 Mbit flash, AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Mreža i konekcija
Wi-Fi
LAN priključak (Ethernet)
1x Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Wi-Fi standardi
Realtek Wi-Fi 6 RTL8851BE
WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands
Support for 11ax 160MHz wireless standard
Bluetooth
Bluetooth verzija
Bluetooth 5.3
Integrisana mrežna kartica
Grafika
HDMI
1x HDMI 2.1
TMDS, HDCP 2.3
DisplayPort
1x DisplayPort 1.2
HDCP 2.3
Integrisana grafička kartica
Multi GPU podrška
USB
USB
2x USB 2.0
3x USB 3.2
Zvuk
S/PDIF
1x S/PDIF Out (internal)
3.5mm
1x Mic In
1x Line In
1x Line Out
Integrisana zvučna kartica
Kodeci zvučne kartice
Realtek Audio CODEC
High Definition Audio 2/4/5.1/7.1-channel
Skladištenje
Broj M.2 slotova
2
Broj SATA slotova
4
RAID kontroler
Tip RAID-a
RAID 0
RAID 1
RAID 5
RAID 10
Slotovi za proširenje
PCIe slot
1x PCI Express 4.0
2x PCI Express 3.0
Broj PCIe slotova
3
Ostalo
Hlađenje
Pasivno
TPM 2.0
Ostalo
B760M GAMING PLUS WIFI DDR4 matična ploča
Podržava Intel® Core™ procesore 14./13./12. generacije
Nenadmašne performanse: Hibridno digitalno VRM napajanje sa 4+1+1 faza
Dual Channel DDR4: 4× DIMM slota uz podršku za XMP memorijske module
Skladište nove generacije: 2× PCIe 4.0 x4 M.2 konektora
Brze mreže: Wi-Fi 6 (802.11ax), Gigabitni LAN
Proširena povezivost: Prednji USB-C® 5 Gb/s, DisplayPort (DP), HDMI
Smart Fan 6: Više temperaturnih senzora, hibridni konektori za ventilatore sa funkcijom FAN STOP
Q-Flash Plus: Ažuriranje BIOS-a bez instaliranog procesora, memorije i grafičke kartice
Izdržljive performanse
Jednostavna i pristupačna za korišćenje
Moguća su odstupanja karakteristika proizvoda u zavisnosti od revizije matične ploče
CPU: LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
Memory: Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
Expansion Slots: CPU - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
*The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Storage: RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
H/W Monitoring:
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Konektori

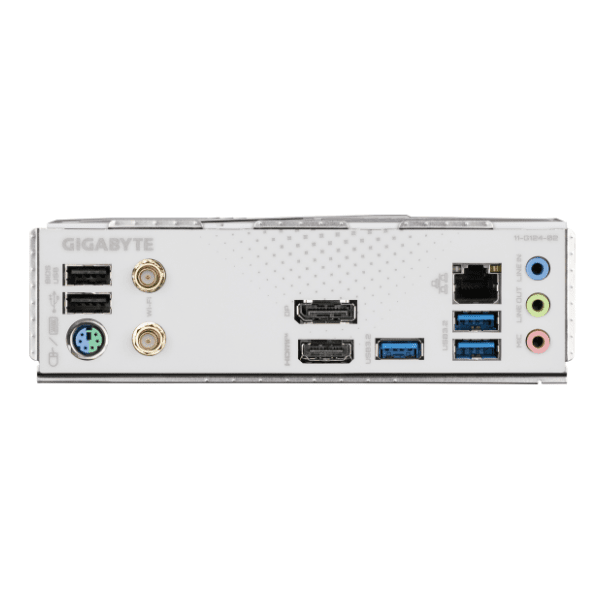

Spisak konektora na zadnjoj strani
2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
2 x SMA antenna connectors (2T2R)
1 x DisplayPort
1 x HDMI port
3 x USB 3.2 Gen 1 ports
1 x RJ-45 port
3 x audio jacks
Spisak internih konektora
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x parallel port header
1 x S/PDIF Out header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
