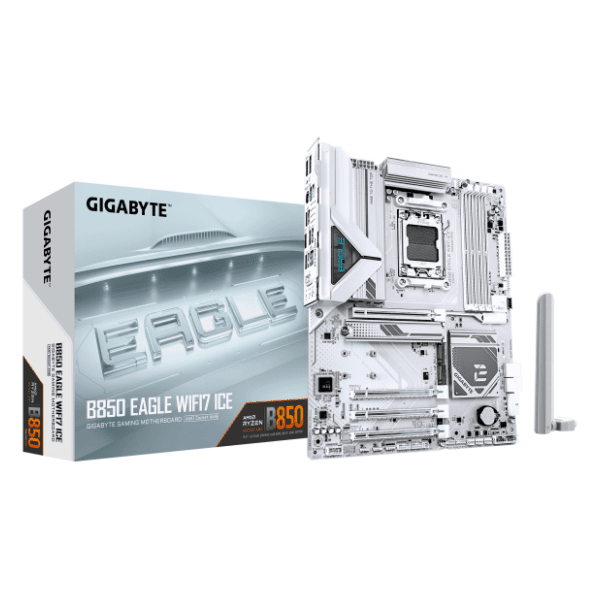

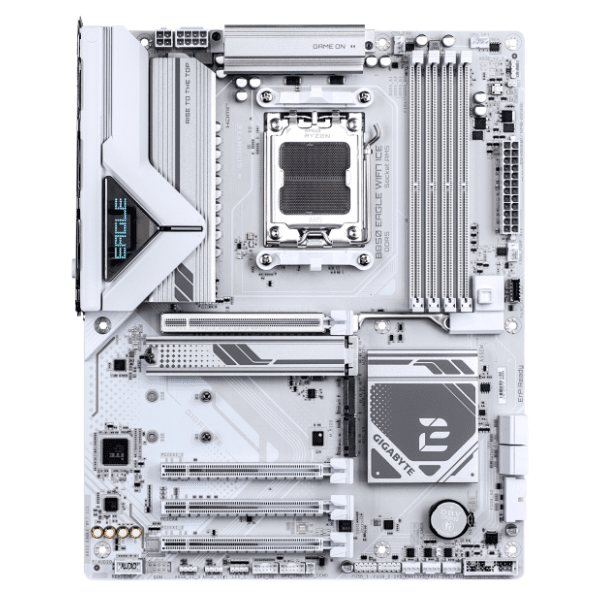

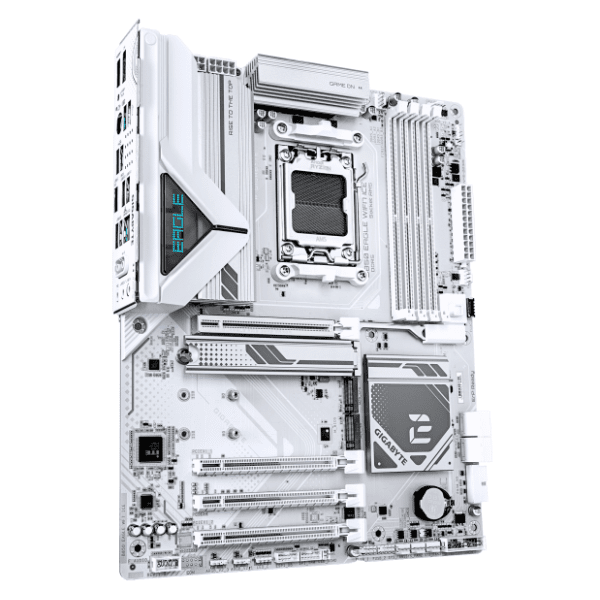

GIGABYTE B850 EAGLE WIFI7 ICE matična ploča

X3D Turbo Mode DDR5 OC do 8200 MT/s AMD Socket AM5: Podrška za AMD Ryzen™ 9000 / 8000 / 7000 seriju procesora Digitalno VRM napajanje 8+2+2 faze Dual Channel DDR5: 4 × DIMM slotovi sa podrškom za AMD EXPO™ memorijske module Wi-Fi EZ-Plug: Brz i jednostavan dizajn za instalaciju Wi-Fi antene EZ-Latch Plus: PCIe i M.2 slotovi sa brzim otpuštanjem i dizajnom bez šrafova EZ-Latch Click: M.2 hladnjaci sa dizajnom bez šrafova Prijatan i intuitivan interfejs: Višestruke teme, AIO kontrola ventilatora i Q-Flash automatsko skeniranje u BIOS-u i softveru Ultra-brzo skladište: 3 × M.2 slota, uključujući PCIe 5.0 x4 Efikasno hlađenje: VRM Thermal Armor Advanced i M.2 Thermal Guard Brza mrežna povezanost: 2.5GbE LAN i Wi-Fi 7 sa usmerenom Ultra-high gain antenom Proširena povezivost: HDMI, DisplayPort PCIe UD Slot: PCIe 5.0 x16 slot sa do 10× većom čvrstoćom za grafičku kartu i poboljšanim odvođenjem toplote X3D Turbo Mode koristi jedinstvene parametre optimizacije koji omogućavaju poboljšanje gejming performansi čak i kod Ryzen™ 9000 X3D procesora, dok Ryzen™ 9000 non-X3D procesorima pomaže da dostignu sličan nivo gejming performansi kao njihovi Ryzen™ X3D pandani. Uživajte u uglađenijem gejmpleju, višim frame rate-ovima i smanjenoj latenciji zahvaljujući GIGABYTE BIOS inovaciji - X3D Turbo Mode. One-Click Acceleration: Povećajte gejming FPS performanse jednim klikom. Moguća su odstupanja karakteristika proizvoda u zavisnosti od revizije matične ploče Memory: Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules Onboard Graphics: 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Expansion Slots: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2) Storage: RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices H/W Monitoring: Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup

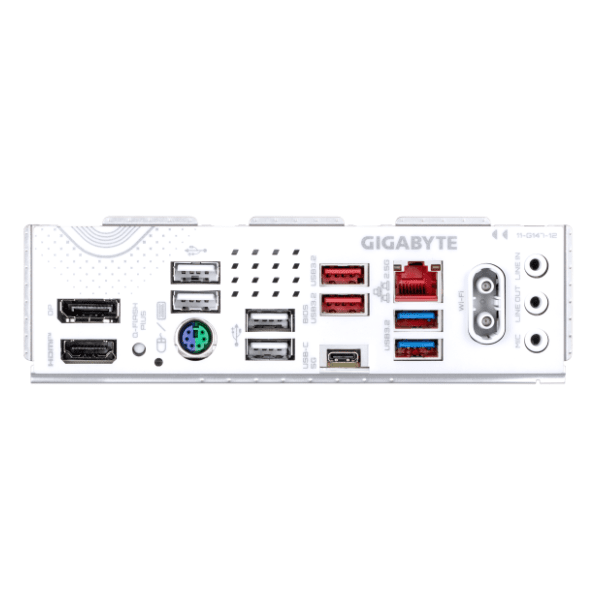

1 x DisplayPort (Note) 1 x HDMI port (Note) 1 x Q-Flash Plus button 4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x USB 3.2 Gen 2 Type-A ports (red) 1 x USB Type-C® port, with USB 3.2 Gen 1 support 1 x RJ-45 port 2 x USB 3.2 Gen 1 ports 2 x antenna connectors (2T2R) 3 x audio jacks

1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper
