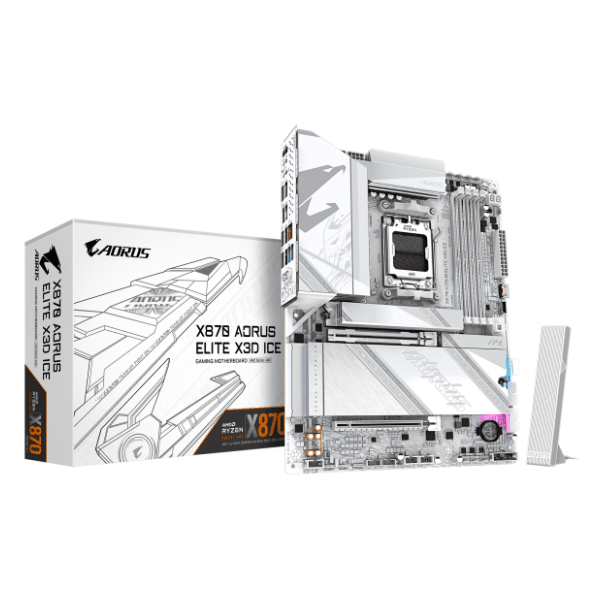

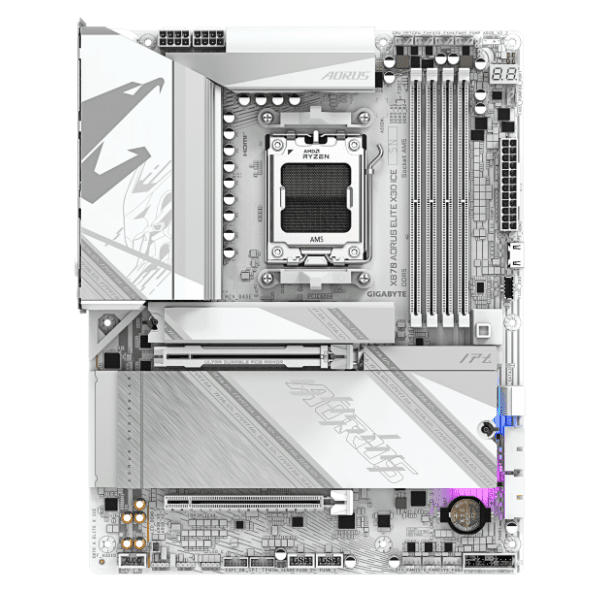

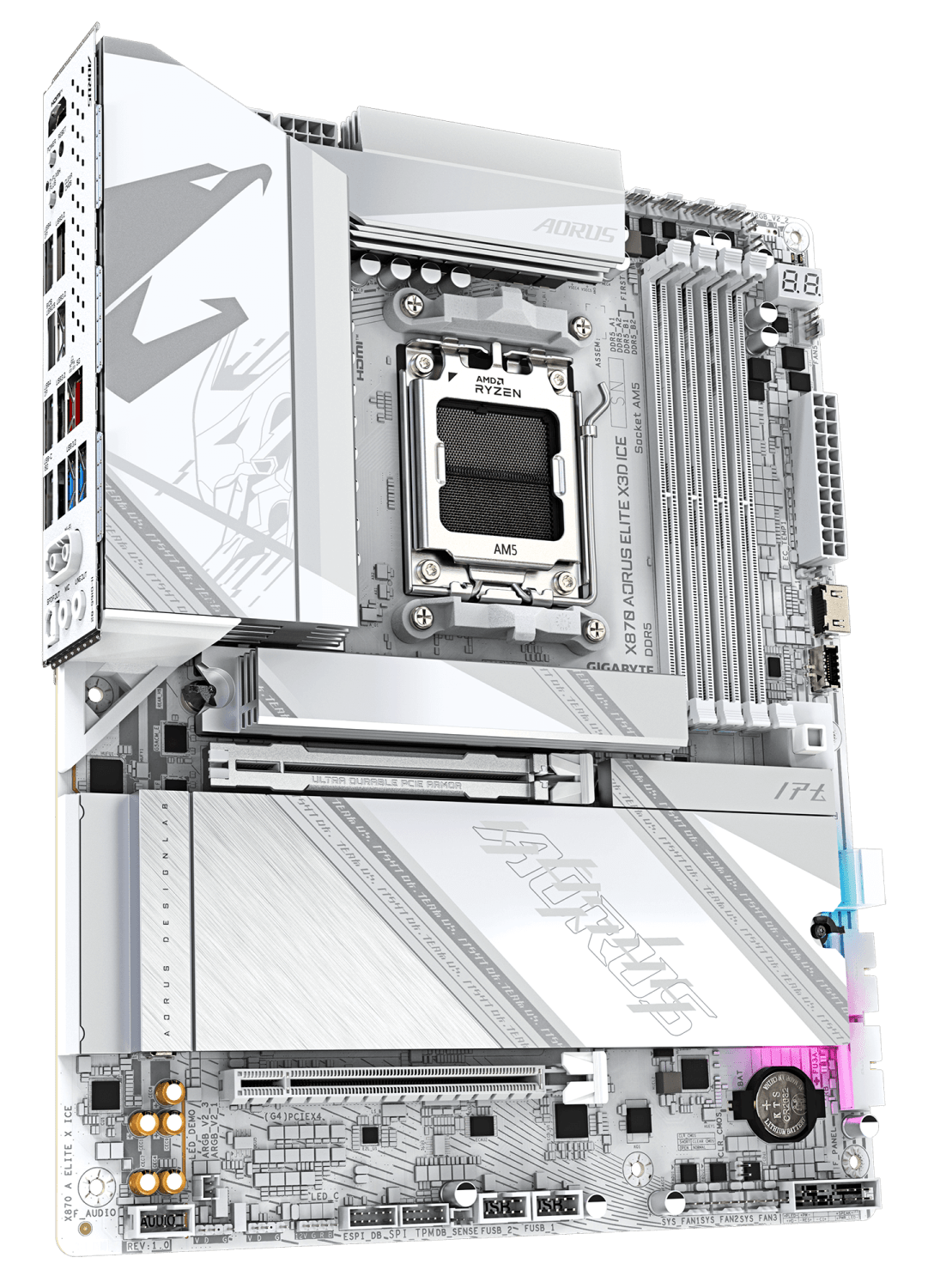

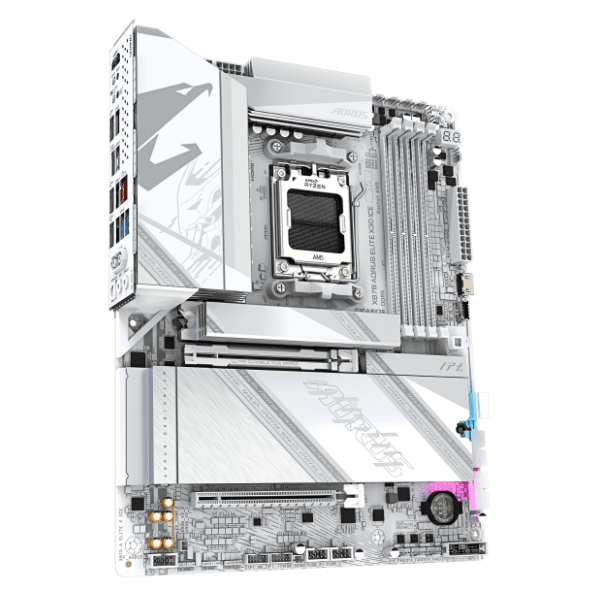

GIGABYTE X870 AORUS ELITE X3D ICE matična ploča

X3D Turbo Mode 2.0: Neverovatne X3D performanse oslobođene uz pomoć veštačke inteligencije DDR5 OC do 8800 MT/s DriverBIOS: Unapred instaliran Wi-Fi drajver, mrežna konekcija odmah po uključivanju i jednostavno pokretanje mreže AMD Socket AM5: Podrška za AMD Ryzen™ procesore serije 9000 / 8000 / 7000 Digitalno VRM rešenje sa 16+2+2 faze napajanja (digital twin) Dual Channel DDR5: 4 × DIMM slota sa podrškom za AMD EXPO™ memorijske module M.2 EZ-Flex: Visokoefikasno odvođenje toplote i fleksibilna patentirana osnovna ploča za M.2 SSD Wi-Fi EZ-Plug: Brz i jednostavan dizajn za instalaciju Wi-Fi antene M.2 EZ-Latch Click & Plus: Brzo otpuštanje i dizajn bez šrafova za M.2 slotove i hladnjake UI: Više tema, kontrola AIO ventilatora i Q-Flash automatsko skeniranje u BIOS-u i softveru Ultra-brzo skladištenje: 4 × M.2 slota, uključujući PCIe 5.0 x4 Efikasno hlađenje: VRM Thermal Armor Advanced, M.2 Thermal Guard L i M.2 Thermal Guard Ext. Brzo umrežavanje: 5GbE LAN i Wi-Fi 7 sa usmerenom Ultra High-Gain antenom Proširena povezivost: HDMI, dva USB4 Type-C porta sa DP-Alt režimom PCIe UD Slot X: PCIe 5.0 x16 slot sa 10× većom čvrstoćom za grafičku karticu X3D Turbo Mode 2.0 donosi unapređene performanse u igrama i multitaskingu u odnosu na prvu generaciju. Ugrađeni AI model i hardverska kola dinamički optimizuju parametre X3D procesora u realnom vremenu, značajno povećavajući performanse Ryzen™ X3D procesora. Zahvaljujući inovativnoj GIGABYTE X3D Turbo Mode 2.0 tehnologiji, korisnici mogu da uživaju u znatno glađem gejming iskustvu. Ubrzanje jednim klikom: Brže, snažnije i preciznije - jednim klikom. Moguća su odstupanja karakteristika proizvoda u zavisnosti od revizije matične ploče Model: X870 A ELITE X ICE Memory: Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules Expansion Slots: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) Storage: RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. RAID 0 and RAID 1 support for SATA storage devices H/W Monitoring: Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup

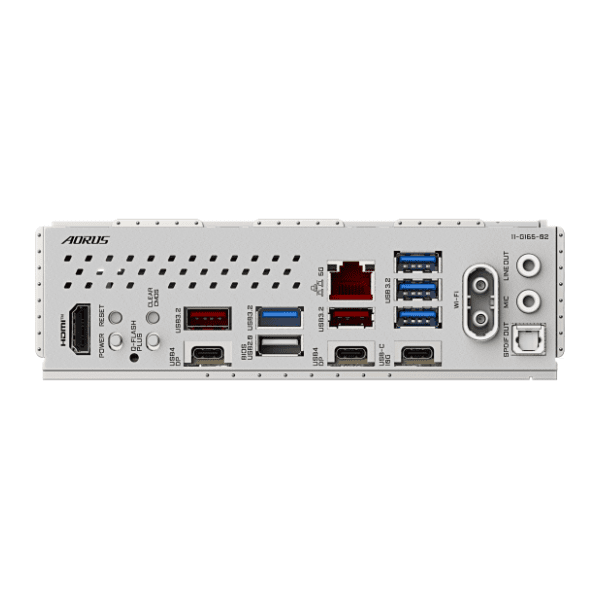

1 x HDMI port (Note) 1 x power button 1 x reset button 1 x Q-Flash Plus button 1 x Clear CMOS button 2 x USB4® USB Type-C® ports (DisplayPort) 1 x USB Type-C® port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 1 x USB 2.0/1.1 port 1 x RJ-45 port 2 x antenna connectors (2T2R) 1 x optical S/PDIF Out connector 2 x audio jacks

1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 2 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x HDMI port 1 x reset jumper 1 x Clear CMOS jumper 2 x temperature sensor headers 1 x noise detection header
